Electric Automatic Heat Press Machine
Product Category:
Electric Heat Press Machine
key word:
undefined
Detailed Description

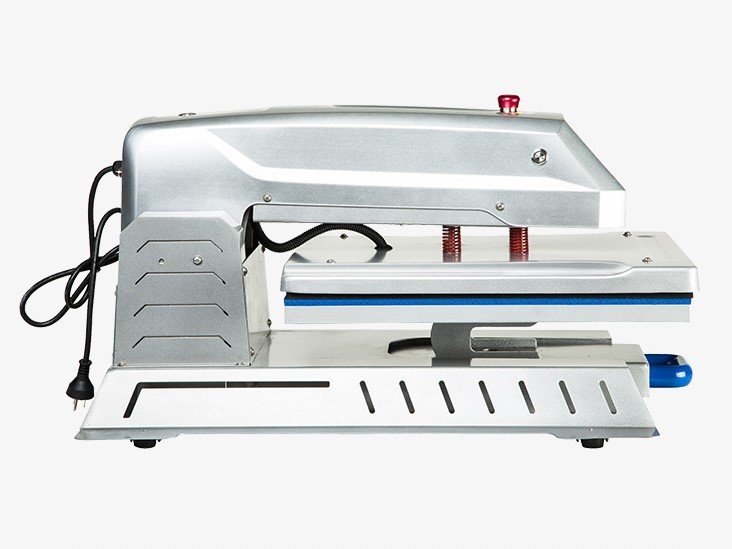

Electric Automatic Heat Press Machine
High-quality heat press machine designed to personalize a wide variety of textile and rigid products. With all the necessary features to increase production efficiency. Automatic closing and opening, reducing operator effort to a minimum.
Indispensable in the process of applying any personalization technique by thermal transfer: sublimation, transfer, textile vinyl, etc.
Lower plate measurements (included): 38 x 38 cm, 40 x 50 cm.
Key Features
# Top plate with triple thermal protection.
# Uniform pressure distribution throughout the customizable area
# Automatic by the electrical system, without the need for a compressor.
# LCD digital display with four buttons for transfer configuration and ironing done to counter.
# Power button and emergency stop button on top.
# Easy removal of the personalized product and exchange of one plate for another.
# Thermal sensor on the heating plate that prevents abnormal increases in temperature.
Specification
| VOLTAGE | 110V/220V |
| POWER | 1400W/1600W/2000W |
| TIME RANGE | 0S-999S |
| MAX TEMP | 0-250° |
| PRINTING AREA | 38cm x 38cm（15"x15”） |
| 40cm x 50cm（16"x20”） | |
| 40cm x 60cm（16"x24”） | |
| GROSS WEIGHT | 67KG/148LBS |
| PACKAGE SIZE | 43*68*79cm |
Instruction Manual
3.Printing
Connect air pipe ,adjust preassure. when the machine has reached the desired temperature, Put objects on table,push it into machine,Press the two buttons on the left and right side,machine start to press down and time,when time is up,machine open automatic，pull out the table and pick up the objects.
Comply with these instructions
1. Do not put the wire on heating plates cover.
2. Do not touch heating plates when it is energized.Caution: Risk of burns.
3. Do not open the machine box and make changes to the device.
4. Do not allow liquid or metal objects inside the hot press.
5.Make ensure the machine is connected with a plug connected to the mass.
6. Don't pull the cable to disconnect the plug.
7.Power off he machine when finish using.
8. Use extreme caution when using near children.
9.Make sure that the device is used in an environment.
