4 EPSON i3200-A1
9 of fluorescent/spot/gradient color
More vivid and brilliant color
Higher coverage capacity
Product Introduction
EVO A-602 DTF Printer
This EVO A-602 DTF printer features four Epson i3200 printheads and uses an 9-color scheme with both fluorescent and spot colors. In addition to its fast and stable printing capabilities, it produces vibrant colors with minimal color deviation. The EVO A-602 is a cost-effective solution that doubles the productivity of DTG printing, making it an excellent choice for creating custom designs on T-shirts, hoodies, caps, jeans, and other personalized products. Whether you're a small business owner or a large-scale manufacturer, this printer offers efficient and economical printing without sacrificing quality.
Features
Fluorescent color or spot color available
i3200 printhead installation-free
Centralized joint control of multiple printers
Convenient built-in air purification unit
Stable and continuous mass production
Details

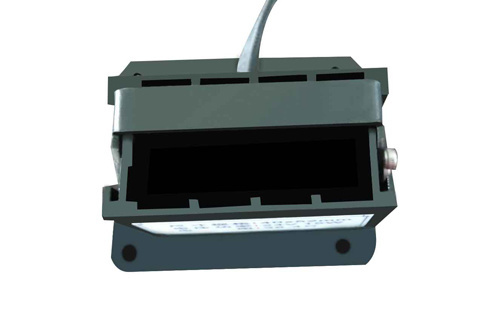

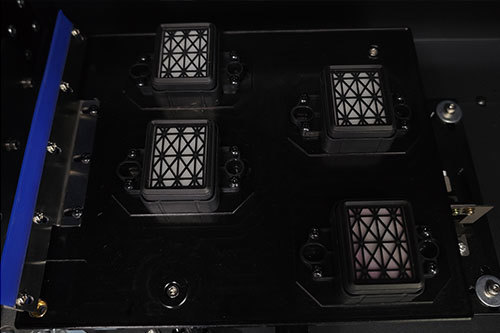

Automatic moisturizing
To prevent the ink from clogging the nozzle, the printhead emits some ink at regular intervals to keep the nozzle moist, which can keep the best working condition of the nozzle.

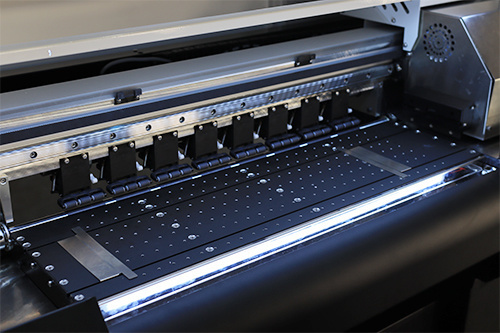

Printhead installation-free
After you receive the printer, there is no necessary to install the printhead. After installing the ink and simple debugging, it can be printed directly.
THK mute guide
Imported high quality THK guide. Highly stable printing with low noise. Long service life, very suitable for high-end machines.

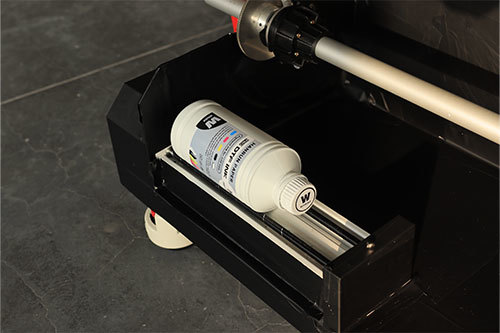

White Ink auto shaking
This function prevents sedimentation of white ink in DTF printers by automatically shaking the ink bottle. It is recommended for both long periods of inactivity and before opening a new bottle of white ink to ensure ink homogeneity.

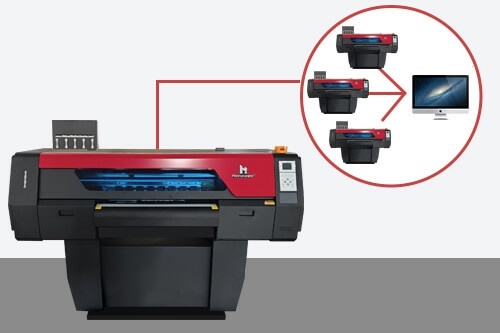

MPM (Multi-Printer Manager)
A computer can control multiple devices with different ip addresses. MPM (Multi Printer Manager) uses one computer to manage multiple printers, helping workers control machine production more quickly and improve production efficiency.

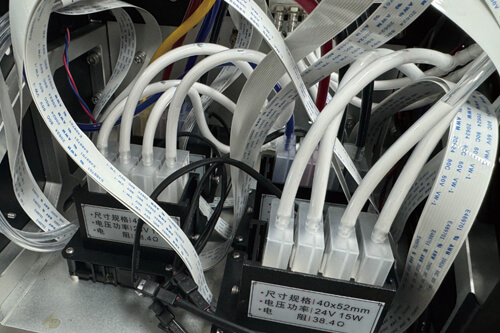

Ink sac heating function
The ink baffle device of this new printer has an external heating function. With this technology, the printer can work normally in an environment with large temperature differences. During the printing process, the heating function can ensure good ink mobility.
Application
Product Specification
| EVO A-602 DTF Printer | |||
| Model | EVO A-602 (Fluorescent color) | EVO A-602 (Gradient color) | EVO A-602 (Spot color) |
| Ink | DTF pigment ink (CMYK+FG/FM/FY/FO+W) | DTF pigment ink (CMYK+LC/LM/LK/LLK+W) | DTF pigment ink (CMYK+R/G/B/OR+W) |
| Printhead | 4 EPSON i3200 | ||
| Print Resolution/Speed | 4pass(360*2400dpi): 12m2/h 6pass(360*3600dpi): 8m2/h 8pass(720*2400dpi): 6m2/h |
||
| Heating sections | Pre-heater; Rear heater | ||
| Printing media width | DTF film 600mm | ||
| RIP software | Photoprint/Maintop/CADlink | ||
| Language | English/Chinese | ||
| Working environment | Temperature: 20-35℃, Humidity:35%-65% | ||
| Power | 450W | ||
| Printer size | 1827(L)*795(W)*1315(H)mm 200kg | ||
| Packing size | 1900(L)*933(W)*1332(H)mm 285kg | ||
| Functional item | Shake powder control/Powder amount control/Temperature control | ||
| Voltage | AC110V / 220V 50HZ/60HZ | ||
| EVO-B600 POWDER SHAKER | |||
| Max width | 600mm | Oven length | 1079mm |
| Heat temperature | 0-400℃ | ||
| Voltage | 110v/220v, 60HZ | Power | 4.6kw |
| Size/Weight | 1850mm(L)*1150mm(W)*1050mm(H) 320kg | ||
| Packing size | 1950mm(L)*1150mm(W)*1150mm(H) 344.5kg | ||
