EVO A-450 DTF Printer

- 5/7 color natural&vivid printing
- Accommodate more different image sizes
- Printheads installation-free

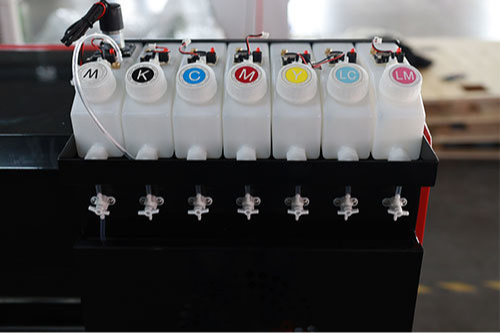

- White ink filtration & circulation system

Product Category:

DTF Printer


key word:

evo dtf dtf installation free dtf transfer printer dtf printing machine direct to film printer dtf transfer printer 7 color dtf printing hanrun paper dtf

Detailed Description

 EVO A-450 DTF Printer


In the process of continuous market research, Hanrun Paper has observed that many DTF printing users have higher printing requirements but are constrained by limited space, so we launched the new Hanrun Paper EVO A-450 DTF printer to meet the requirements of such customers. The EVO A-450 DTF printing machine has been carefully designed and engineered to optimize your printing experience while conserving space. The EVO A-450 DTF printer sets itself apart by accommodating various image sizes, surpassing the capabilities of standard A3 printers. With the capability to print designs of any size up to 450mm, this printer unlocks a world of creative possibilities for users. EVO A450 DTF printer has a 7-color printing system that brings your prints to life with a striking array of vivid and natural colors, ensuring your creations stand out with unparalleled brilliance.



Function Upgrade

dtf-evo-450 7 color system

7 color system

We have designed a 7-color system for this machine, and the printed color transition is more natural and the color is more gorgeous

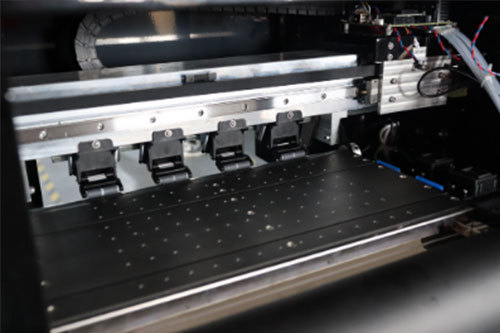

dtf-evo-450 THK silent guide

THK silent guide

A2 Format dtf printing, suitable for 12.99"-16.54" pattern size, high-quality THK guides to ensure stable and quiet printing. These guides provide smooth operation and long life, making them ideal for high-end machines.

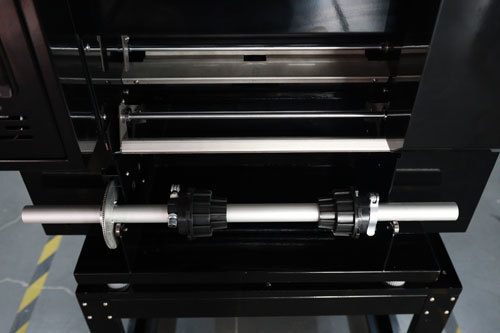

EVO-A450-DTF Electric pinch roller

Electric pinch roller

In order to improve the control of the printer rewind system, we have designed a push key rewind release system. This reduces the difficulty in the operation of the machine and facilitates the rewinding process.

EVO-A450-DTF Tension control system

Tension control system

The tension control system automatically controls tension during DTF film printing processes.

EVO-A450-DTF Integrated smoke purifier and internal heat circulation

Integrated smoke purifier and internal heat circulation

Side-mounted smoke purifier, one port for air intake and one port for air exit. Hot flue circulates continuously in the machine to reduce energy loss.

EVO-A450-DTF Less powder addition frequency

Less powder addition frequency

In order to fully increase the usage rate of a bag of DTF powder, we designed a powder control system to reduce the powder addition frequency during printing.



Specification

EVO A-450 DTF Printer
  Model EVO-A450
  Print head 2 XP600 2  I3200
  Print resolution/speed 8pass:4.5m2/h 4pass(360*2400dpi): 10m2/h
6pass(360*3600dpi): 7m2/h
8pass(720*2400dpi): 5m2/h
  Ink DTF pigment ink (CMYK+W+LC+LM) DTF pigment ink (CMYK+W)
  Three heating sections Preheater; Print bed heater; rear heater
   Printing media width DTF film 450mm
  RIP software Maintop 7.0/CADlink
  Language English / Chinese
  Work environment Temperature: 20-30℃ Humidity:45%-70%
  Power 350w
  Printer dimensions 1314(L)*622(W)*664(H)mm
  Packing dimensions 1370(L)*720(W)*830(H)mm  G.W 115kg
  Functional item Shake Powder Control/Powder Amount Control/Temperature Control
  Voltage AC110V / 220V  50HZ/60HZ



B450 Powder Shaker
  Model B450 Powder Shaker & Oven
  Heating & Drying Function The upper and lower double rows of high- efficiency heating lamps, drying, cold air fan function
  Rewind Function Automatic inducion winding
  Electrical Parameters Rated Voltage: 220v   Rated current: 20A
                      Rated power: 2kw      Power consumption: 1kw-1.5kw
  Powder Shaker Size 1345(L)*795(W)*680(H)mm
  Packing Size & Weight 1440(L)*880(W)*850(H)mm GW:161kg



Features

 The printed color transition is more natural and more gorgeous
 Accommodate more different image sizes
 Printheads installation free
 White Ink Filtration & Circulation System
 Electric pinch roller control system
 Less powder addition frequency



Application

DTF Application Hanrun Paper

Washing labels for garments

Fashion clothes(most kinds of garments and no need to distinguish colors)

Personalized customization





CertificateDTF Certificate Hanrun Paper





Other materials you may need (need to be purchased separately):

DTF Inks

- DTF Ink White Plus

DTF Film

DTF Powder

Heat press machine
