Integrated smoke purifier
Less powder addition frequency
Double constant temperature heating
Reduce energy consumption by 30%
Product Introduction

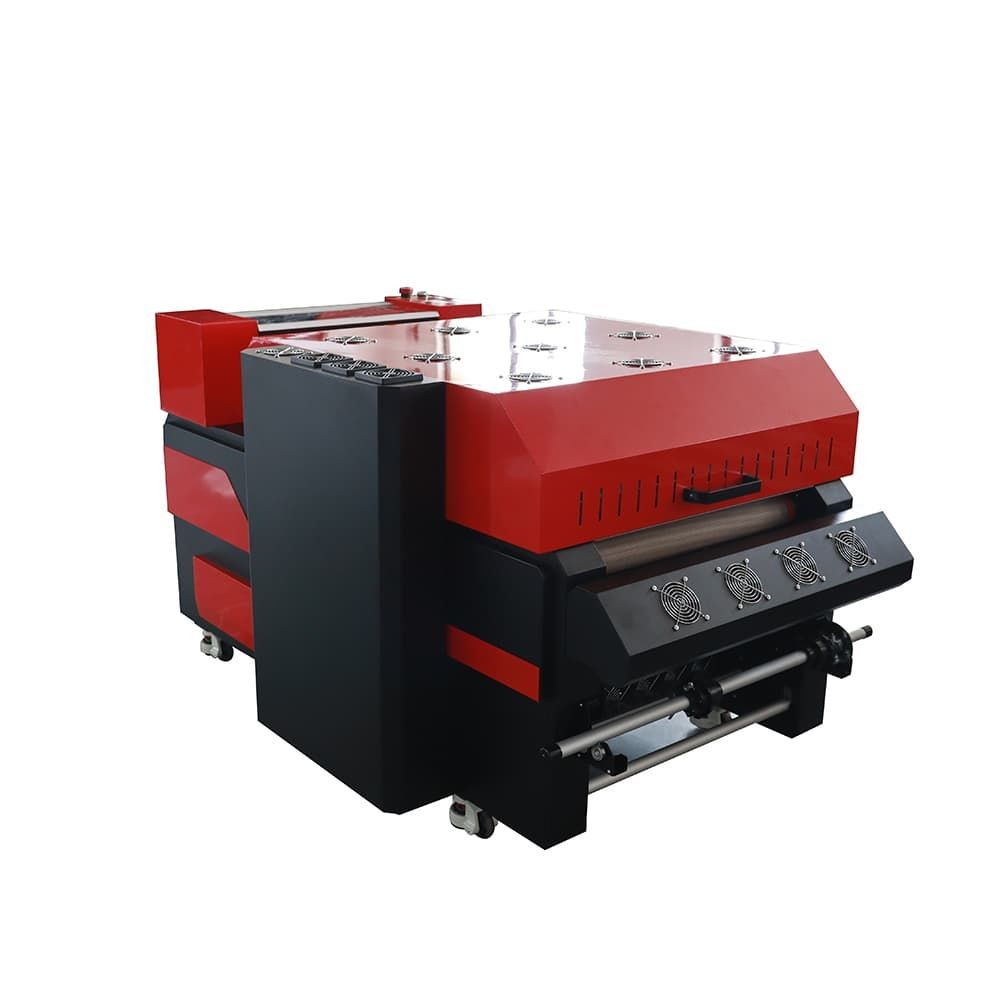

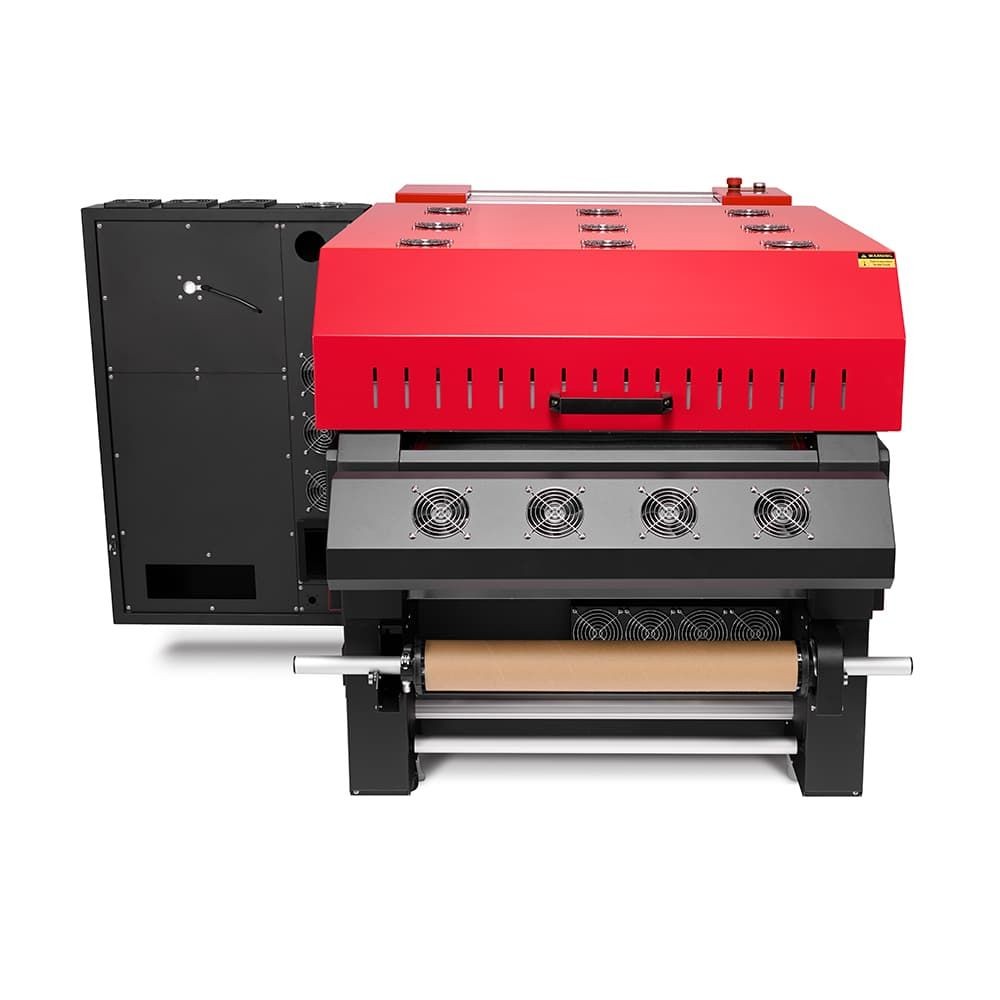

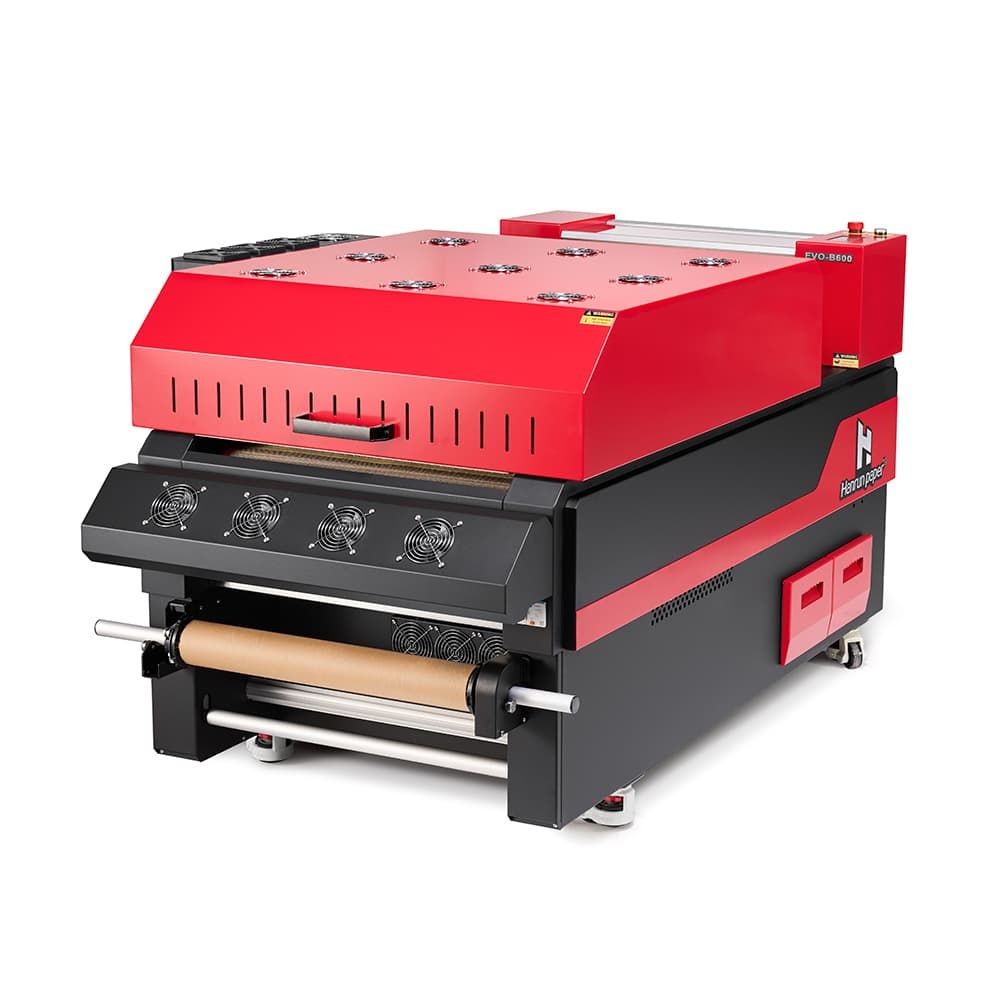

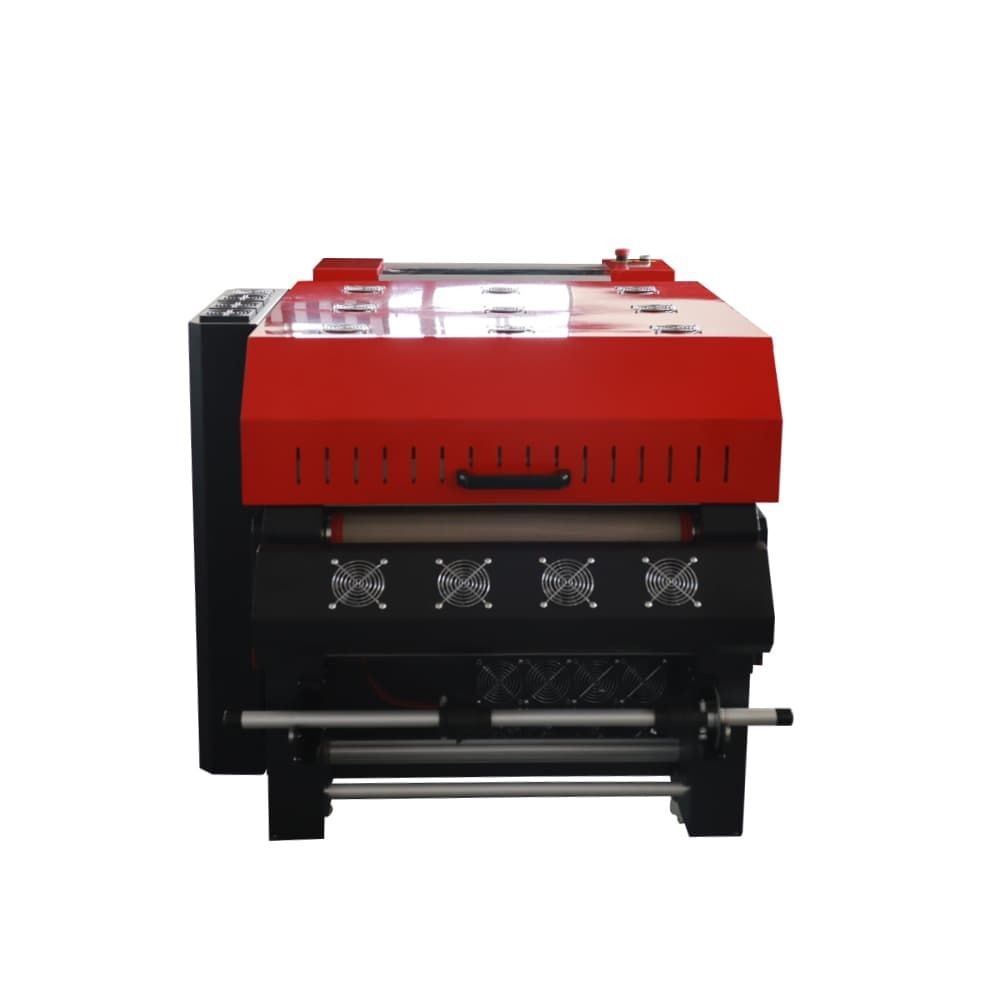

Hanrun Paper® EVO-B600 DTF Powder Shaker
Hanrun Paper has developed the EVO-B600 DTF Powder Shaker for EVO series DTF printers.
EVO-B600 Powder Shaker integrates smoke purification and adopts hot air circulation system to reduce energy loss, effectively reducing energy consumption by 30%. In addition, the EVO-B600 DTF Powder Shaker has been added with more humanized design and more stable machine performance to help you improve productivity.
Details

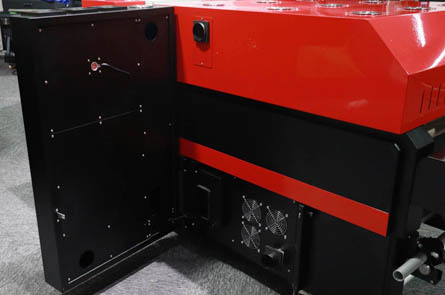

Integrated smoke purifier
Side-mounted smoke purifier, one port for air intake and one port for air exit. Hot flue circulates continuously in the machine to reduce energy loss.

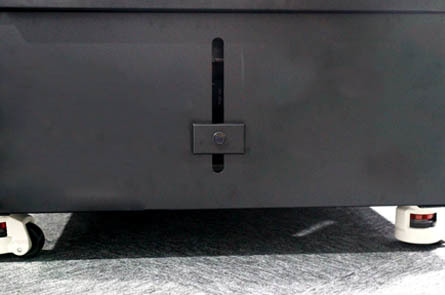

Adjustable film sensing device
The film sensing device of the powder shaking machine can be adjusted up and down in height, so customers can adjust it according to their needs.

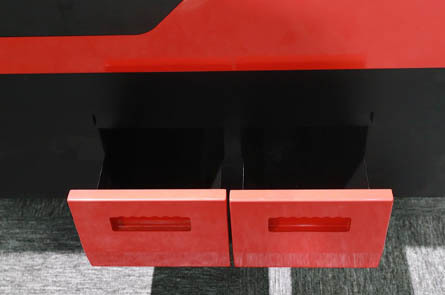

Double powder collection bins
The two powder collection bins can hold different hot-melt powders. And the powder collecting bins can be pulled out on both sides of the machine, which is more convenient to use.

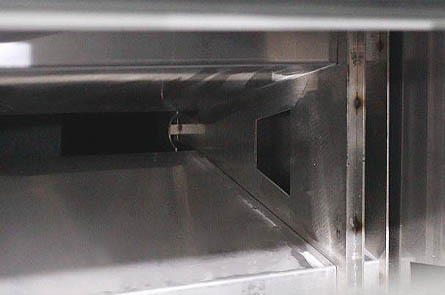

Powder fall control
The baffles can be adjusted to be close to both sides of the film according to the width of the film, so as to reduce the amount of powder falling into the powder collection bin during powder shaking and reduce the frequency of manual powder return.

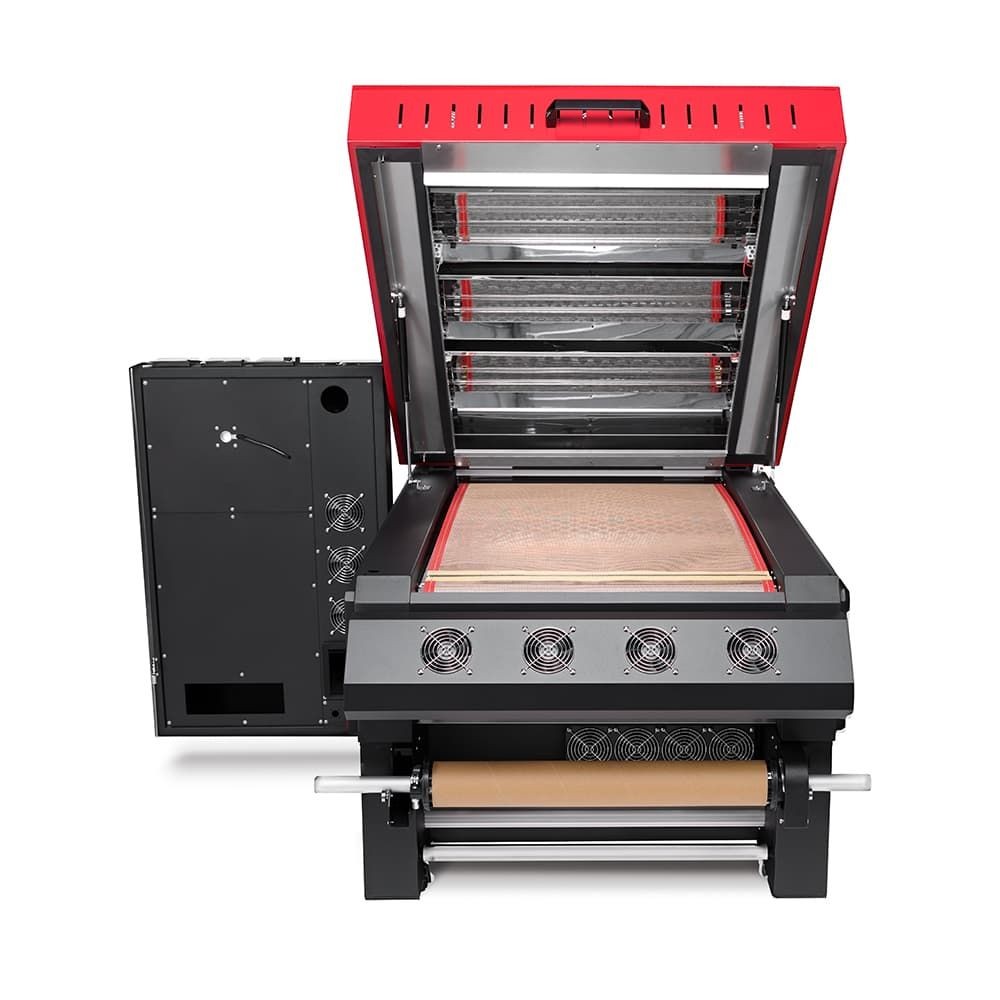

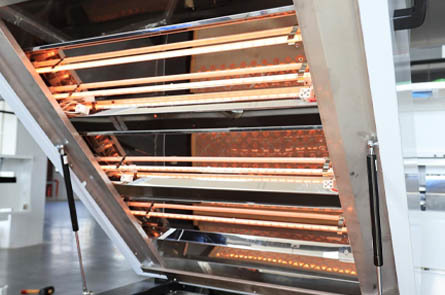

Double layer heating
The upper and lower layers are each equipped with 4 heating tubes, and the length of the baking area is close to 1m, which makes the film drying more uniform and thorough, ensuring that the finished product does not produce oil.
Certificate
Application
Product Specification
| EVO-B600 DTF Powder Shaker | |
| Model | EVO-B600 |
| Max width | 600mm |
| Oven length | 1079mm |
| Heat temperature | 0-400℃ |
| Voltage | 110v/220v, 60HZ |
| Power | 4.6KW |
| Size | 1850mm(L)*1150mm(W)*1050mm(H) |
| Weight | 320kg |
| Packing size |
1950mm(L)*1150mm(W)*1150mm(H) 344.5kg |
| Match model | Hanrun Paper EVO DTF Printer |
