-Blanket Feed & Return Control
-Tri-Color Status Indicator
-Double-Sided Positioning Design
-Touch Control Screen
Product Introduction
The Mini Roller Lanyard Heat Transfer Machine is specially designed for manufacturers who need stable, high-quality output but prefer a compact and efficient setup. Unlike bulky industrial heat press systems, this mini roller model uses an optimised heating structure and precise pressure system to achieve consistent and brilliant heat transfer results on polyester lanyards, straps, and ribbons.
Its compact footprint makes it ideal for small workshops, custom-print studios, and on-demand production environments. Despite its small size, it delivers impressive performance—offering uniform temperature control, smooth feeding, and continuous roll-to-roll operation. Whether you are producing personalised lanyards, company ID straps, promotional event accessories, or branded merchandise, this machine provides the reliability and efficiency needed for professional results.
Features
# Suitable for printing on various headbands, running ribbons, speciality webbings, garment straps, and shoelaces, and it can also heat-press and flatten different lanyards.
# Equipped with a synchronised mixing shaft and a unique positioning system to ensure the product does not shift or show white edges, allowing multiple straps to be transferred at the same time.
# Dual-sided positioning worktable enables easy double-sided transfer printing on webbing, with precise alignment on both sides and zero deviation.
# Automatic shutdown when the set temperature is reached, improving efficiency.
# Touch Control Screen-The PLC control system is stable and reliable, allowing precise adjustment of key parameters such as temperature and speed, ensuring consistent production and higher output quality.
Details

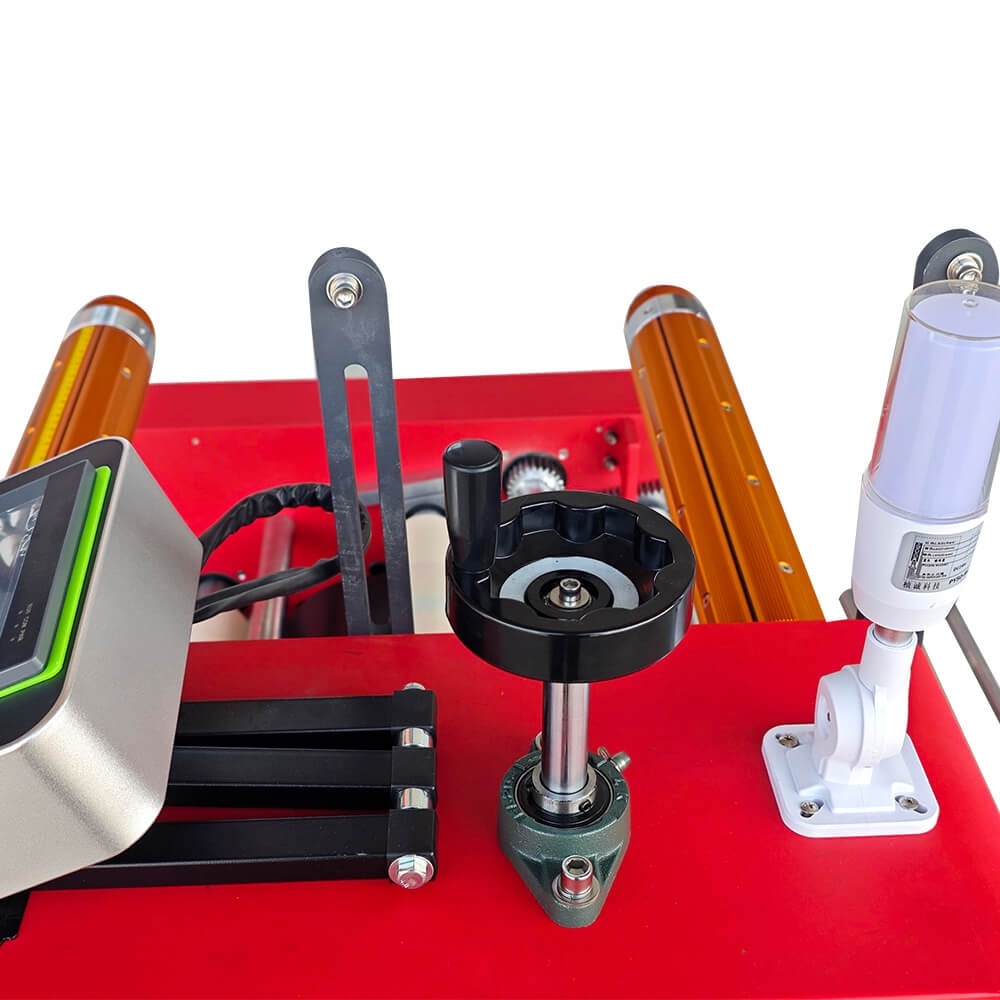

Blanket Feed & Return Control
Manual control of the blanket’s movement extends its lifespan, minimising wear and maximising durability.

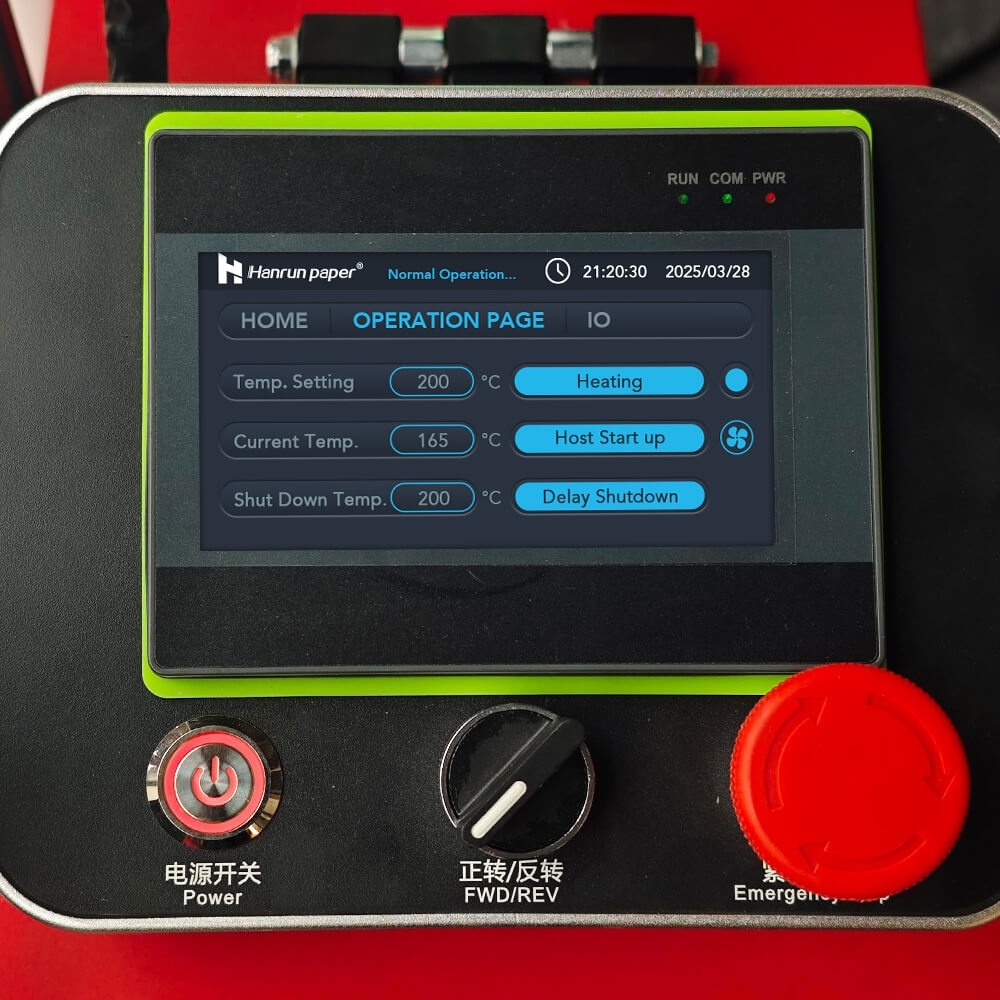

Touch Control Screen
The PLC control system is stable and reliable, allowing precise adjustment of key parameters such as temperature and speed, ensuring consistent production and higher output quality.

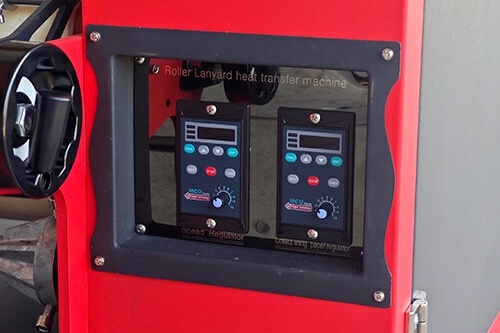

Easy Control Knob
Easily adjust the rotation speed of both the paper rewind roller and the pressure belt roller, protecting your materials while ensuring precise handling.

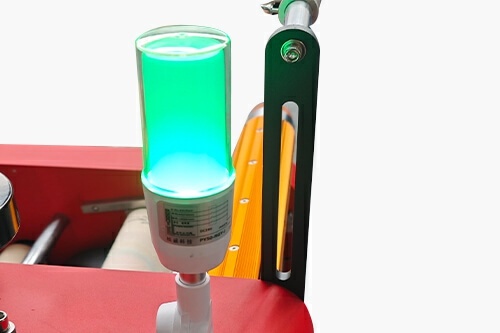

Tri-Colour Status Indicator
Clearly displays machine status at a glance, keeping operations smooth and under control.

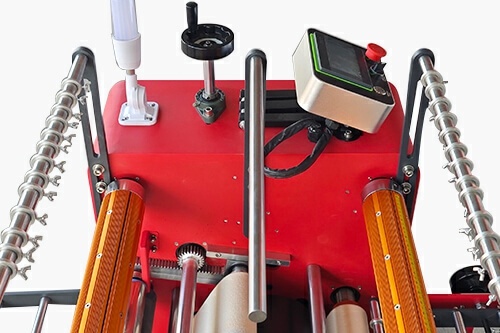

Double-Sided Positioning Design
Equipped with forward and reverse rotation, it enables easy and precise double-sided printing on webbing with perfect alignment on both sides.

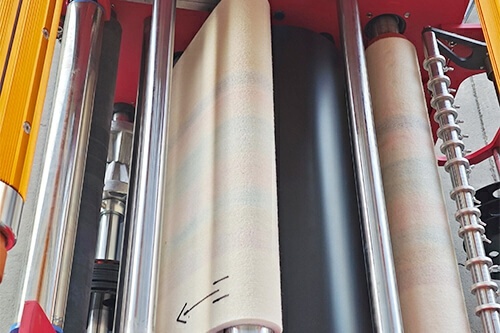

PTFE-Coated Roller
High hardness, wear-resistant, non-stick surface, ensuring excellent transfer results.
Product Specification

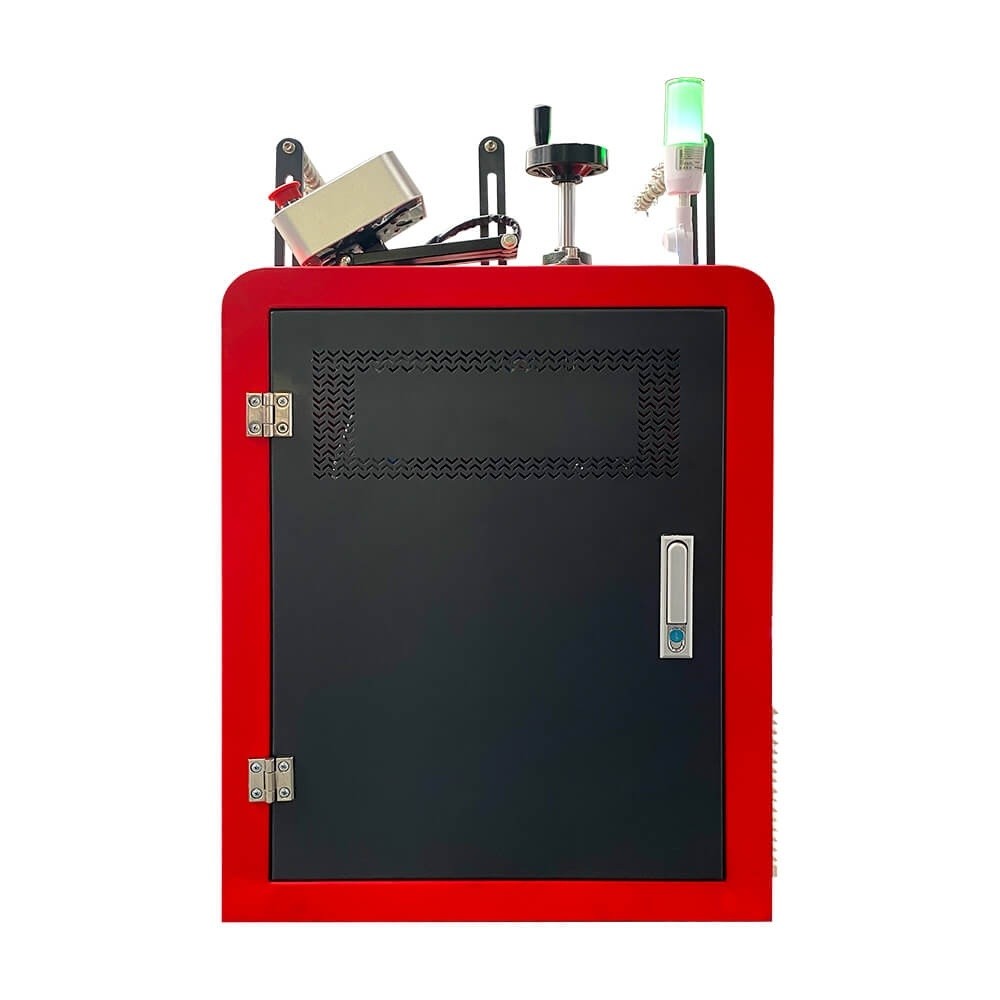

| SP-R2040 Mini Roller Lanyard Heat Transfer Machine | |
| Model | SP-R2040 |
| Specifications | 20cm*40cm |
| Working pressure | 0 ~ 8 kg/cm² |
| Touch screen display | Mitsubishi automatic screen |
| Temperature range | 0-250℃ |
| Voltage | AC110V/220V 50HZ/60HZ |
| Speed | 30-50m/h |
| Power | 3kw |
| Dimensions/Net Weight | 92*104*111(cm) /320kg |
| 36″*41″*44″ | |
| Package Size/Packing Weight | 135*95*137(cm) /351kg |
| 53″*37″*54″ | |
