Automatic Film Pickup System
6-station rotary system
Cantilever Touchscreen Control Panel
Consistent Quality, Minimal Waste
Product Introduction

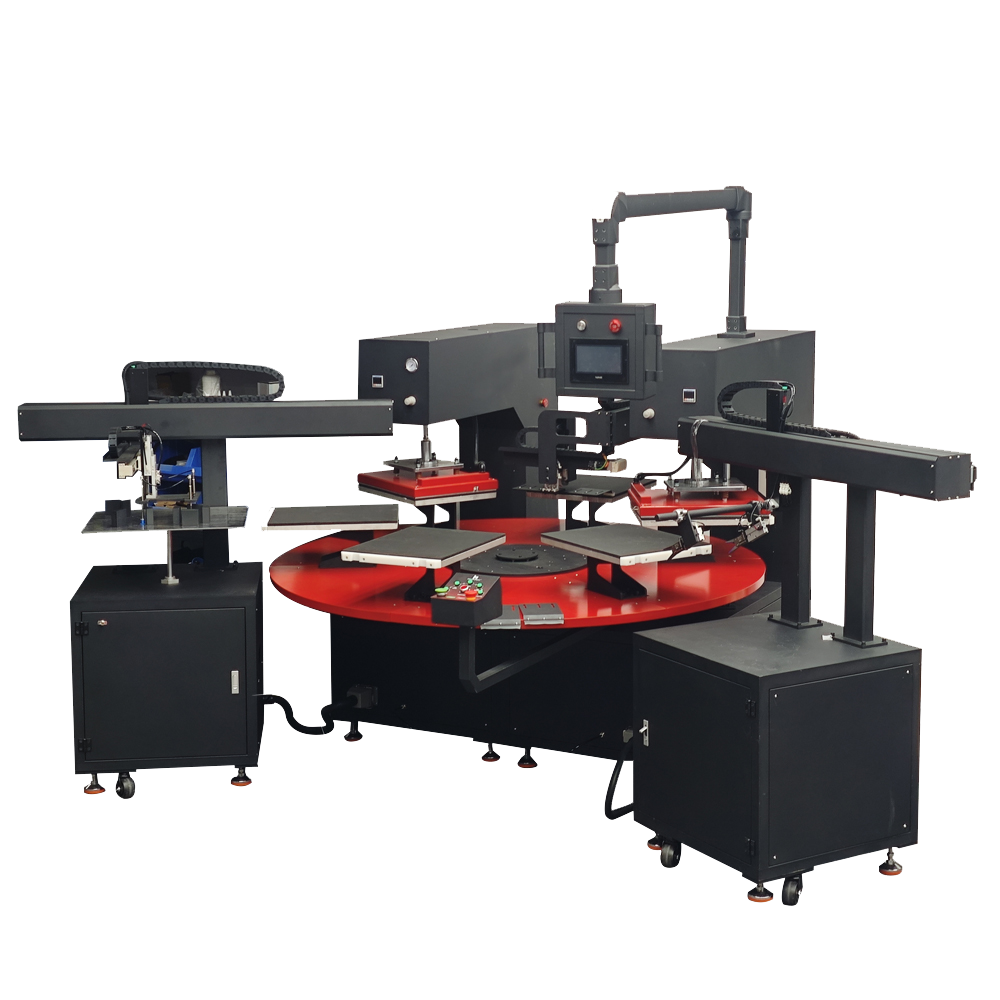

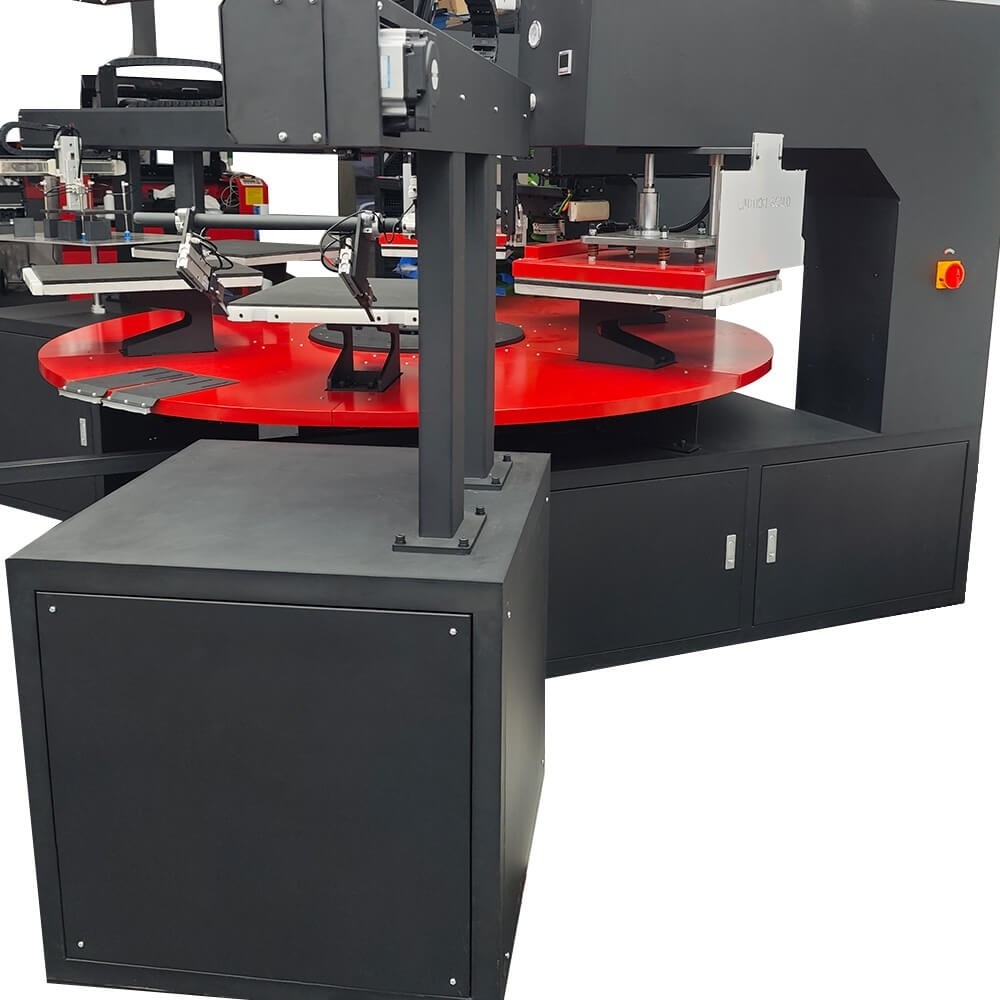

The Super-F4050-6 is a 6-station fully automatic heat press machine specifically designed for high-volume production. Featuring a continuous workflow, it integrates film pickup and placement, automatic pressing, auto film peeling, and finished product collection.
This machine significantly boosts productivity, reduces labor requirements, and ensures consistent, high-quality results. It is widely compatible with flat materials such as T-shirts, garments, canvas bags, and pillowcases. As your ideal partner for mass production, the Super-F4050-6 helps you streamline your workflow and stay ahead of the competition.
Features
# Cantilever Touchscreen Control Panel: Equipped with a 3-axis articulated arm and adjustable angles. Multiple operation modes are available via the touchscreen for easy and intuitive control.
# Fully Automatic Control with Precise Positioning: Features an automatic film peeling and collection system for streamlined operation and reduced manual handling.
# Dual-Head, Dual-Heating Aluminum Plates: Offers initial transfer and secondary pressing after film removal, resulting in enhanced print clarity and a more refined finish.
# Servo Motor-Driven Rotation: High-efficiency, smooth, and stable electric rotation reduces manual effort and significantly increases productivity.
# Thickened Heating Plates with Insulation: Delivers stable and uniform heat distribution. Integrated heat-resistant cotton provides burn protection, improves energy efficiency, and helps maintain consistent temperature.
# U-Shaped Base Plate Design: Specially designed U-slot on the base plate facilitates easy garment pickup by robotic arms for automated operation.
# Easy Multi-Film Peeling: Capable of peeling 2–3 films of various sizes at different angles, ensuring compatibility with diverse transfer needs.
Details

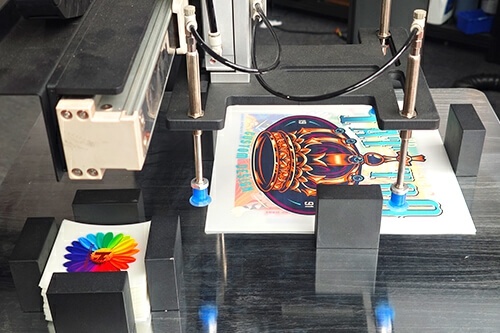

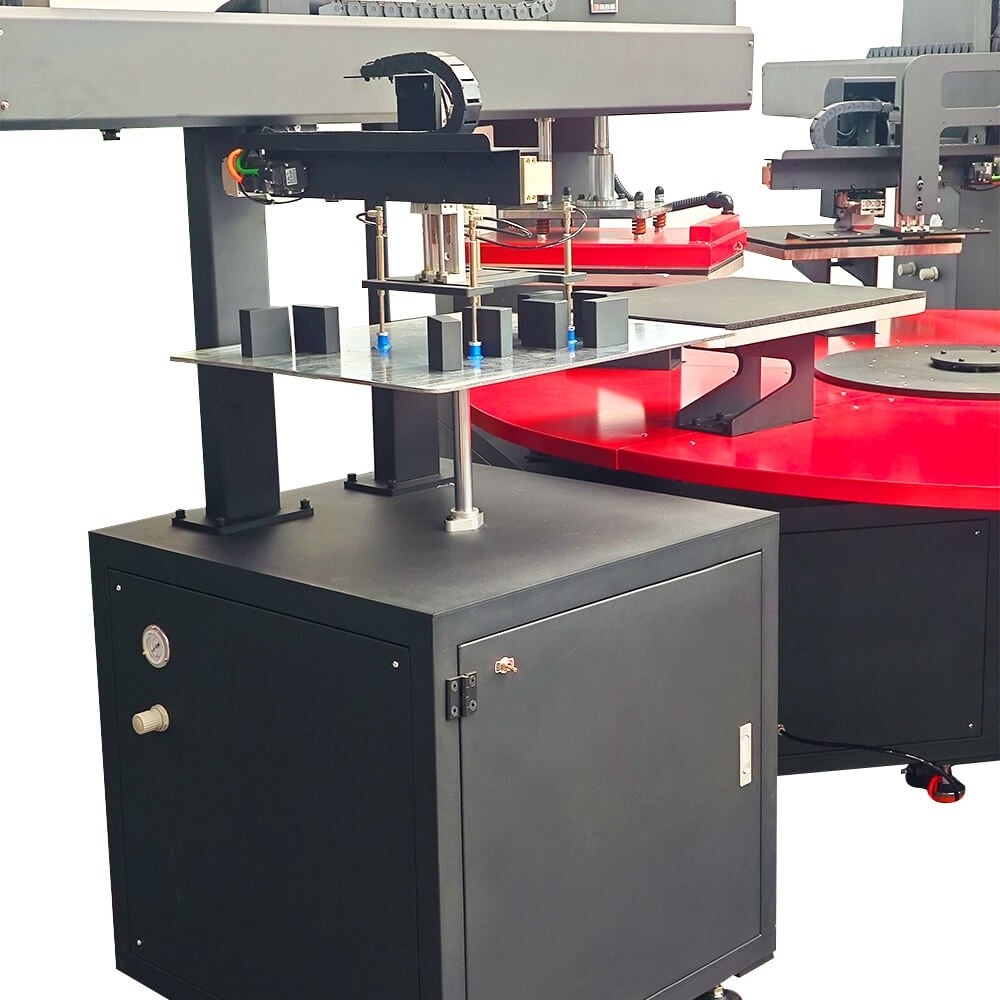

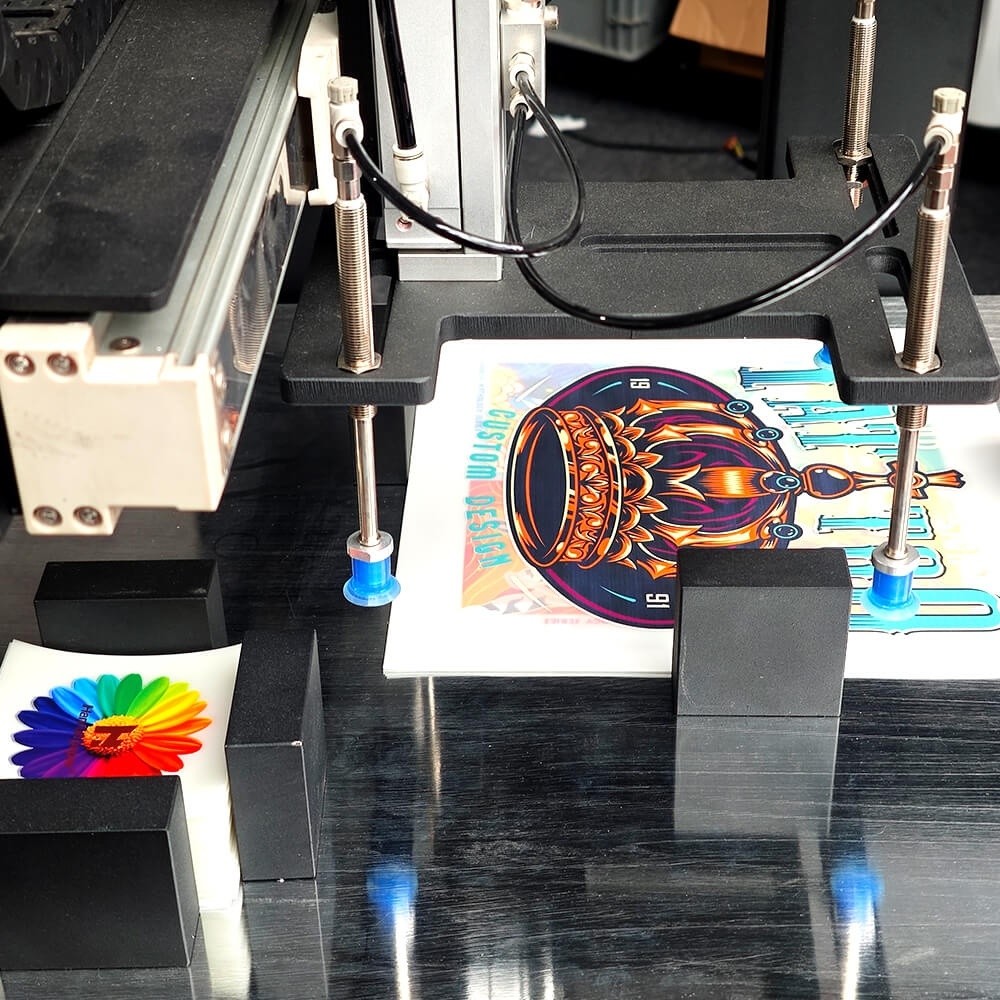

Automatic Film Pickup System
Equipped with an advanced film adsorption unit that automatically picks up and releases the film.

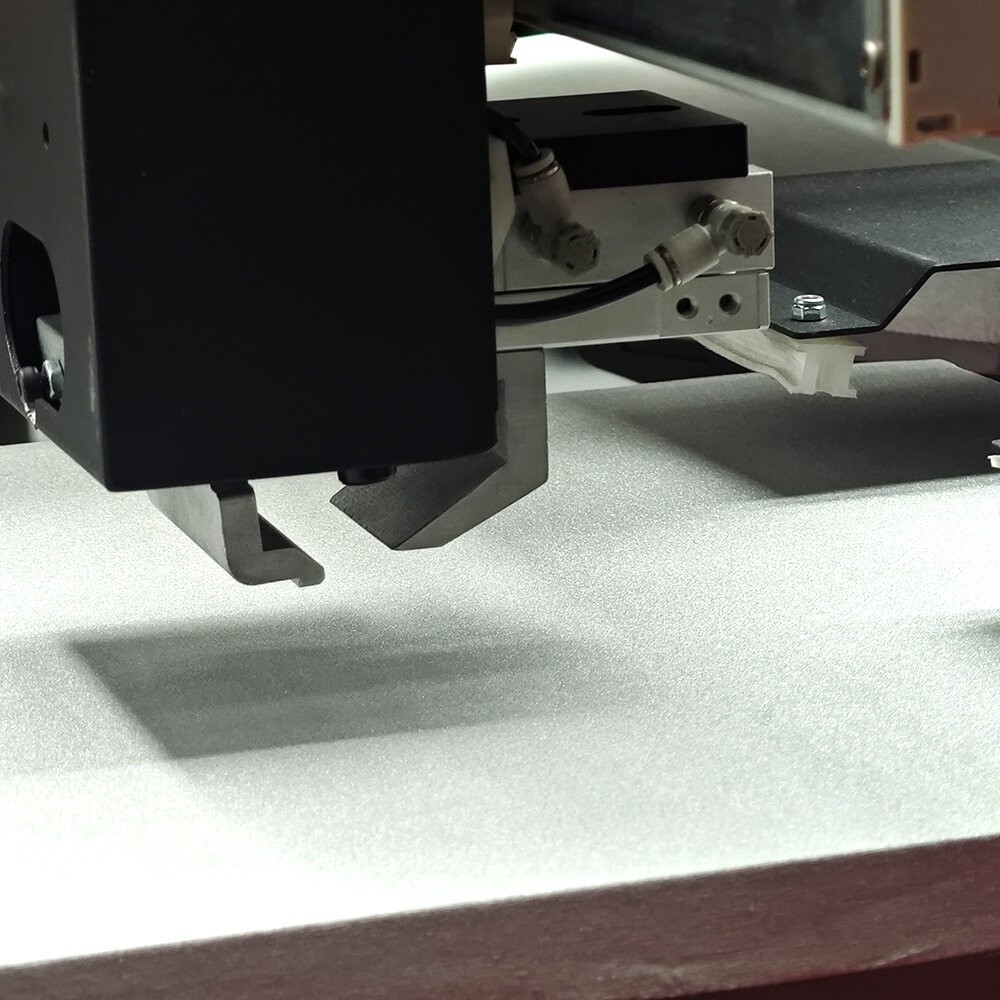

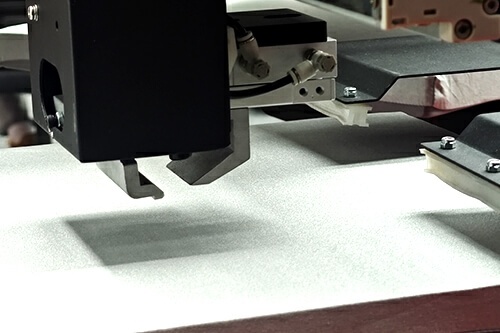

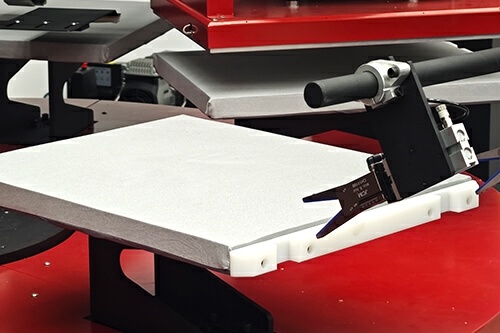

Automatic Film Peeling System
Powered by advanced motor control, the system automatically peels off the film and supports multi-angle peeling of 2 to 3 films simultaneously.

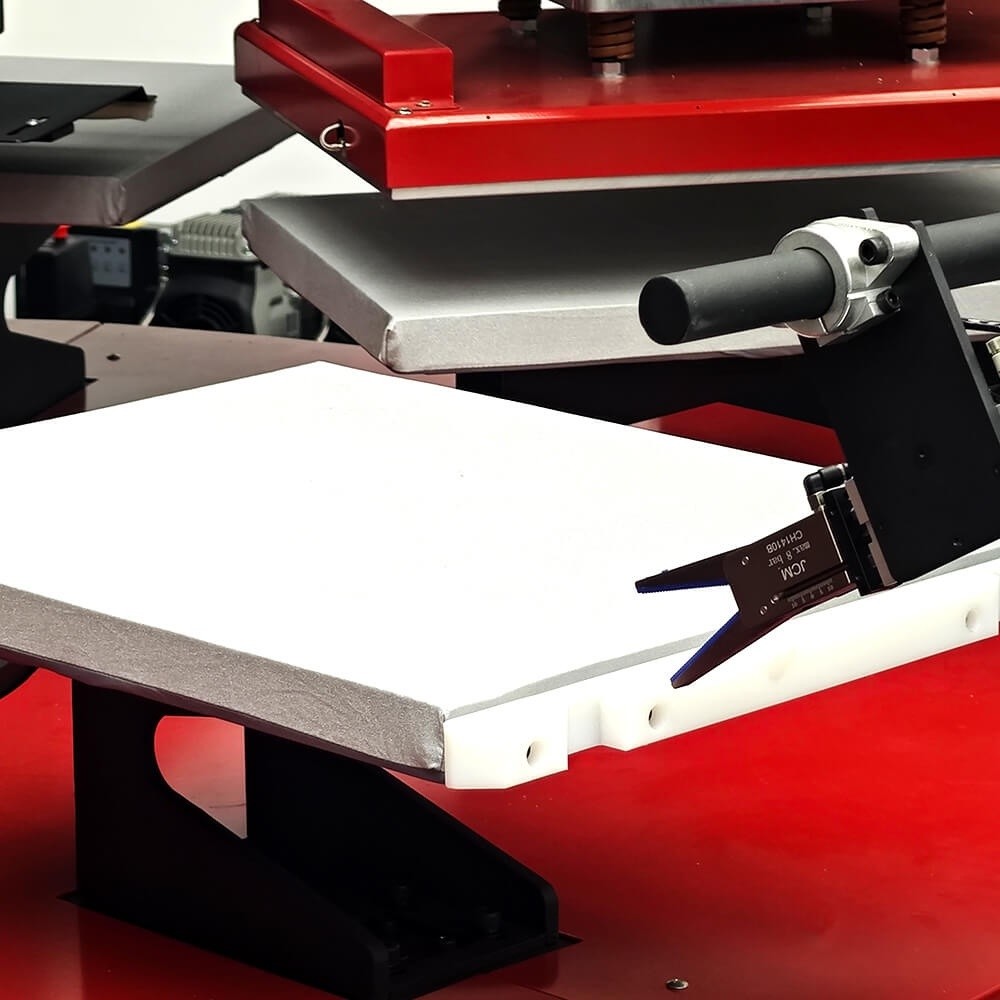

Auto Finished-Garment Collector
Efficiently gathers pressed garments for streamlined workflow and increased output.

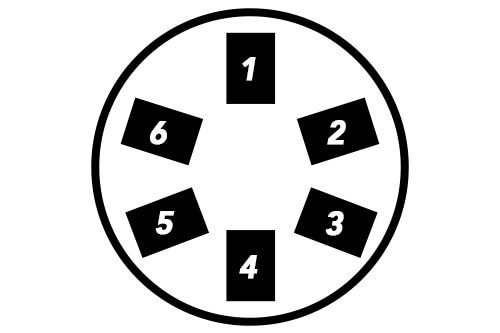

6-station rotary system
Enables multi-station continuous cycling, boosting productivity by 4–7 times.
Consistent Quality, Minimal Waste
With fully automated control of temperature, time, and pressure, each transfer is precise and repeatable—reducing defects and ensuring uniform results.

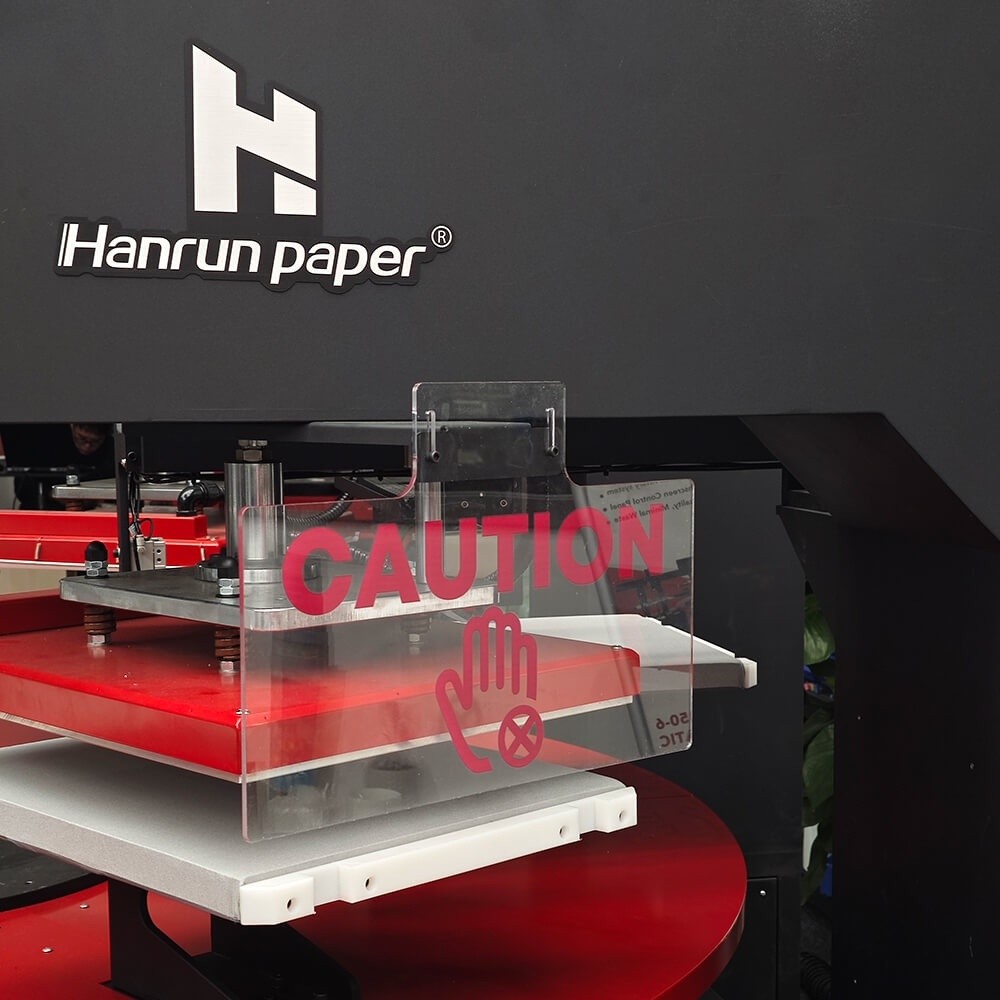

Safety & Protective Functions
Designed with safety in mind: anti-scald guards, emergency stop, and real-time error alerts.
Application
Product Specification
| Super-F4050-6 Automatic Heat Press | ||||||
| Model | Super-F4050-6 | |||||
| Operation Mode | Manual/Automatic/Test （Available operation modes） |
|||||
| Touch Screen Type | Touch Screen + Physical Keys | |||||
| Heating Panel Size | 400*500mm | |||||
| Heating Temperature Range | 0~299℃ | |||||
| Heating Time Range | 20 Minutes | |||||
| Maximum Pressing Speed | 5 Seconds （Production time for one T-shirt） |
|||||
| Number of Materials Stripped Simultaneously | 3 | |||||
| Packaging Form | Wooden Box | |||||
| Heating Plate Power | 3KW | |||||
| Voltage | 220V | |||||
| Total Machine Power | 7KW （Generally works at 4kw） |
|||||
| Machine Size /Net Weight | 3000mm*3000mm*2000mm 1000KG |
|||||
| Packaging Size / Gross Weight | Wooden Box 1: 2050mm*2050mm*1900mm Wooden Box 2: 1500mm*1400mm*1790mm 1150KG |
|||||
