Product Introduction

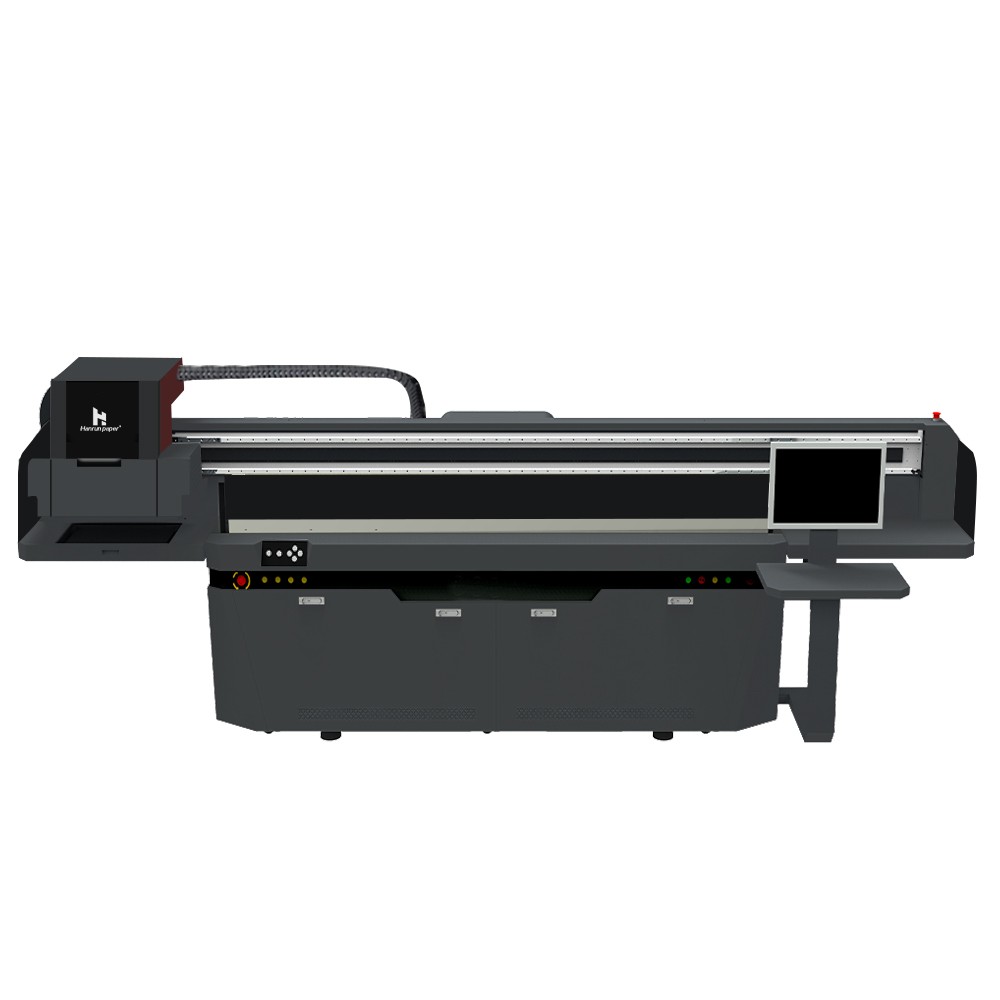

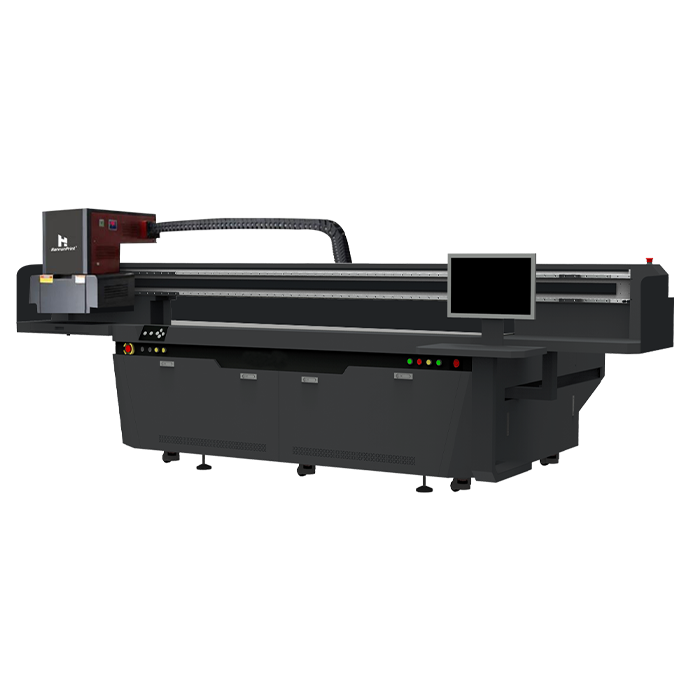

UV-H2513 Large Format Flatbed Printer
Designed for the increasing demands of efficiency, precision, and stability in industrial UV printing, Hanrun UV-H2513 delivers a reliable digital printing solution for advertising, manufacturing, customization, and premium applications.
Featuring a high-rigidity structure, precision engineering, and a magnetic levitation linear motor system, the UV-H2513 provides fast, smooth, and accurate operation. Supporting up to 8 G6 industrial printheads, combined with an intelligent lifting carriage and automatic height detection, it enables flexible printing on various materials with different thicknesses.
Equipped with a negative pressure ink supply system and multi-zone vacuum platform, the printer ensures stable ink delivery and precise material positioning. Hanrun also offers high-performance UV hard inks with excellent adhesion, vivid colors, and outstanding weather resistance, together with professional RIP software and color management solutions for optimized print quality.
UV-H2513 provides a complete UV printing solution integrating printer, ink, and RIP technology, helping global customers achieve higher productivity and superior print performance.
Features
Large Format Printing:
With a printing area of 2500 × 1300mm, it meets the demands of large-format printing applications.
Four-Zone Vacuum Control System:
Four-zone vacuum control securely holds the media in place, improving printing accuracy and stability.
Magnetic Levitation Linear Motor:
Equipped with a magnetic levitation linear motor drive system, delivering high-speed, precise and vibration-free operation for stable industrial UV printing performance.
Negative Pressure Ink Supply System:
Precisely controls ink pressure to ensure stable ink delivery, reduce printhead failures, and improve print consistency and long-term equipment reliability.
Automatic Height Detection System:
Automatically detects media thickness and adjusts printing height, enabling flexible handling of different substrates while improving operation efficiency and printing safety.
High-Quality Output:
Equipped with up to 8 G6 industrial printheads, delivering high-speed, high-precision printing performance for large-volume production and premium image quality.
One-stop UV Printing Solution:
Providing dedicated inks, RIP profiles, and color management to ensure stable output, precise colors, and superior print quality.
Details

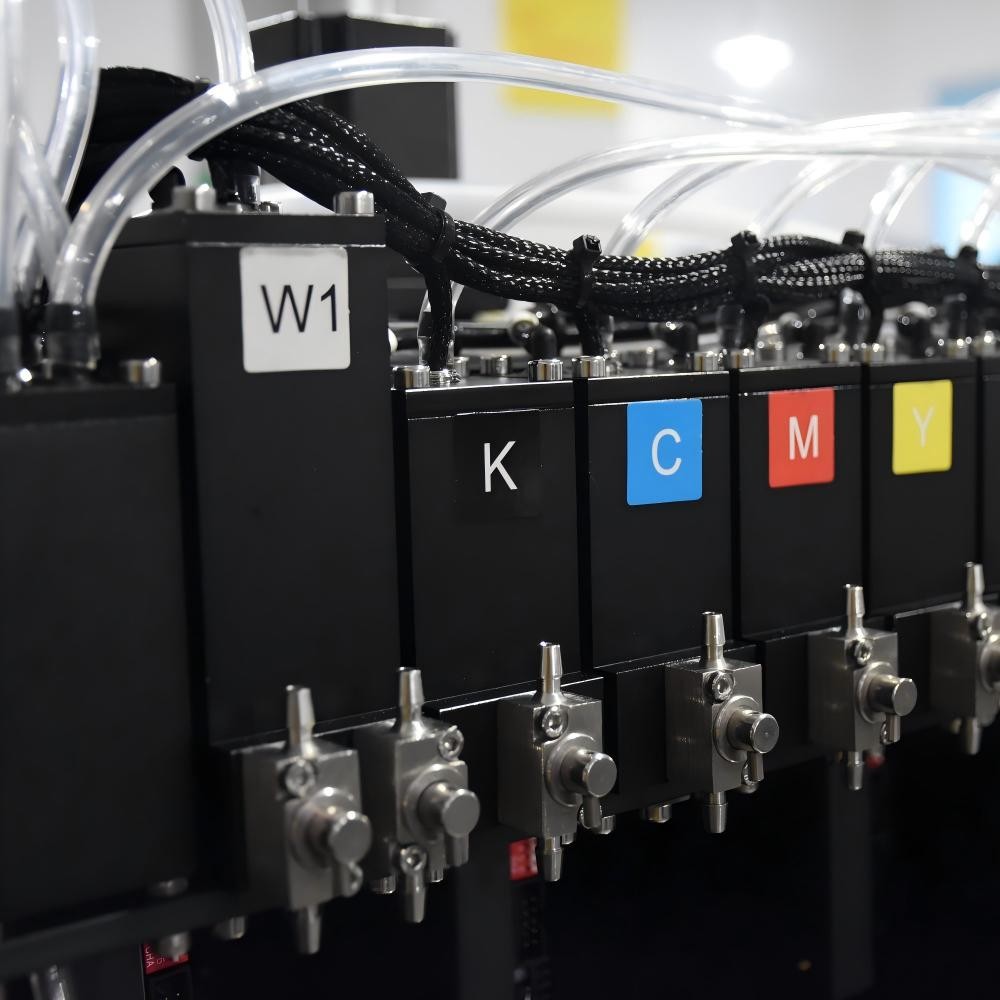

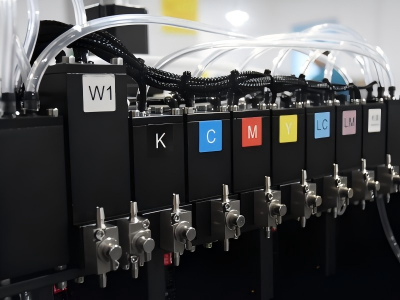

Dual Negative Pressure Ink Supply System
The dual negative pressure ink supply system independently and precisely controls ink pressure, ensuring more accurate and continuous ink delivery while improving printing stability, color consistency, and printhead lifespan.

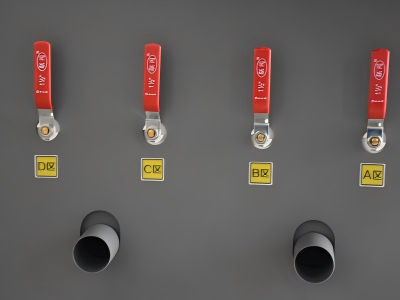

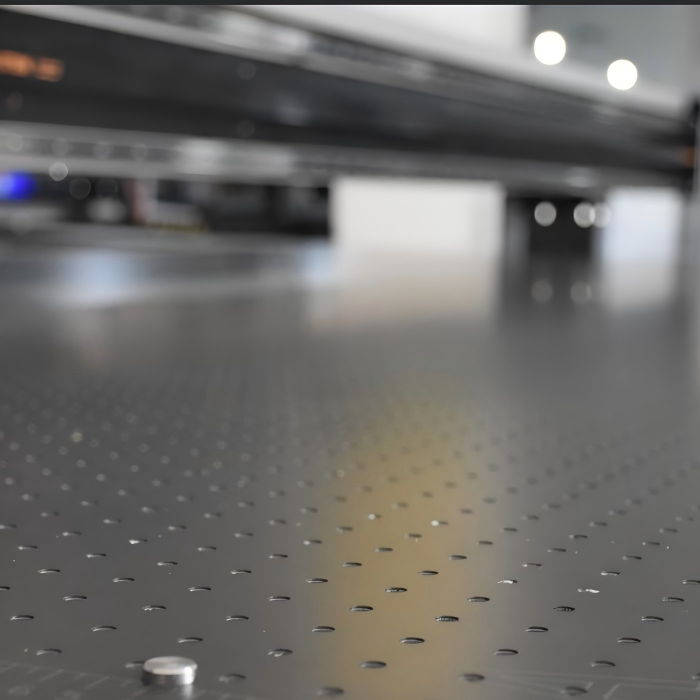

Four-Zone Vacuum Control System
The four-zone vacuum control system flexibly adjusts suction areas according to different substrates, ensuring stable media fixation while improving printing positioning accuracy and production efficiency.

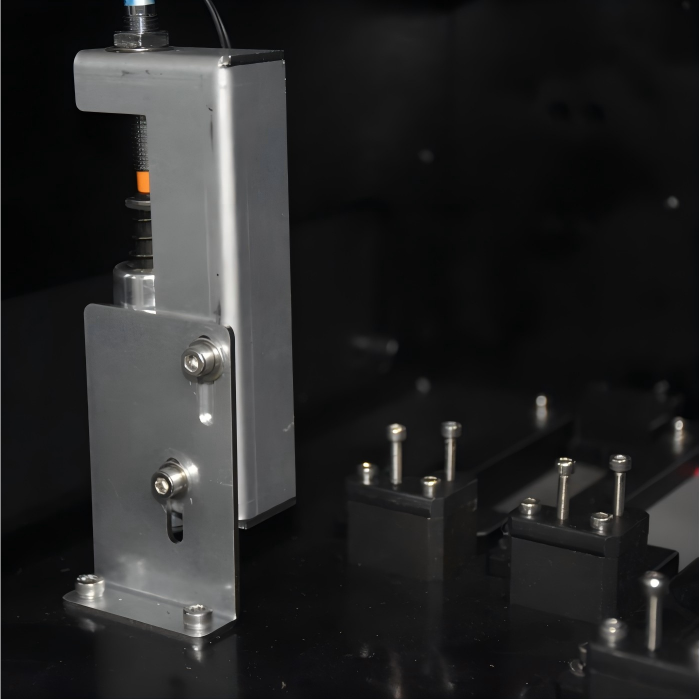

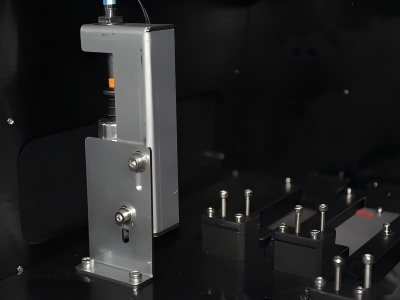

Automatic Height Detection System
The automatic height detection system intelligently detects substrate height and automatically adjusts the print distance, enabling compatibility with different media thicknesses while improving operation efficiency and printing safety.

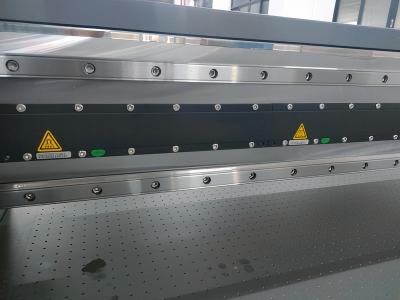

Magnetic Levitation Linear Motor
The magnetic levitation linear motor delivers high-speed, precise, and contactless motion control, reducing mechanical wear and vibration while improving printing accuracy, operational stability, and equipment lifespan.
Carriage Anti-Collision & Resume Printing Function
The carriage anti-collision and resume printing function effectively prevents damage caused by collisions and supports print recovery after interruption, reducing material waste while ensuring continuous production and equipment safety.

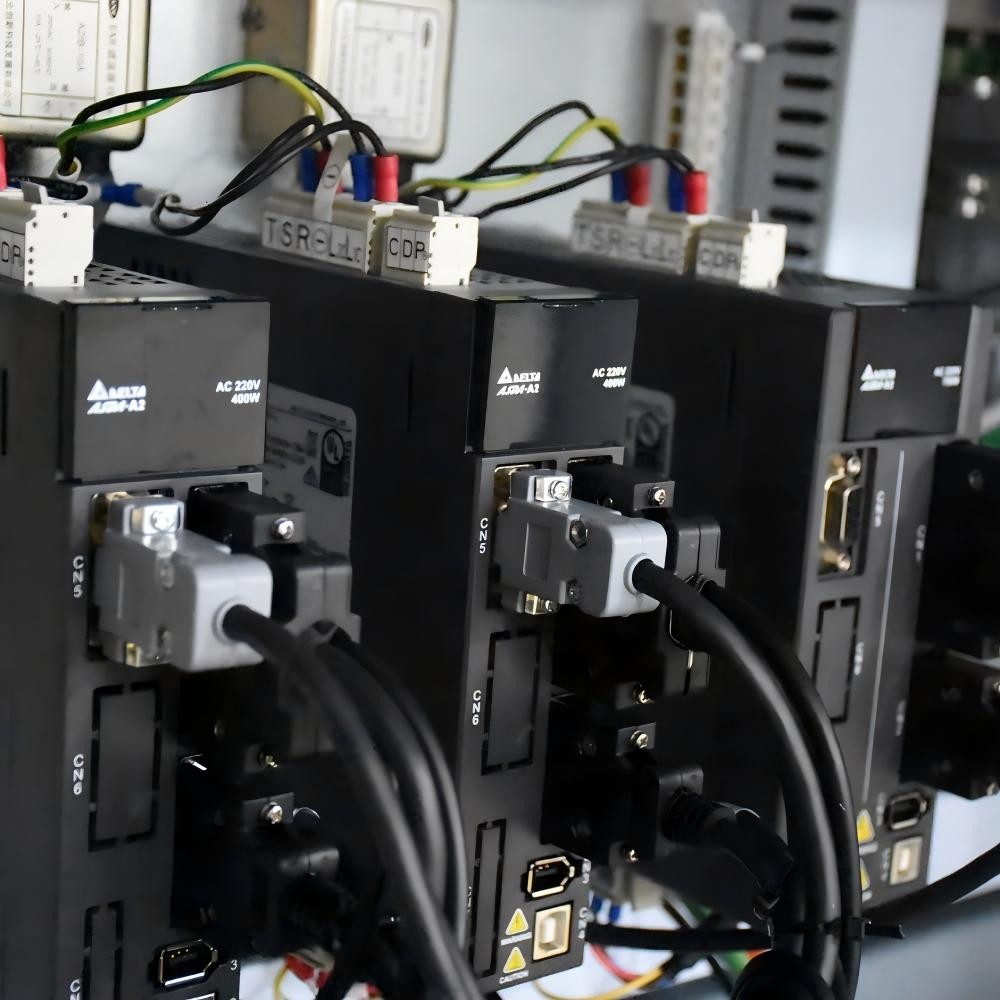

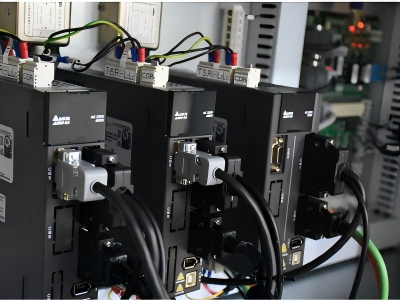

High-Quality Servo Motors
Powered by three sets of branded servo motors, the printer achieves precise and stable motion control, improving positioning accuracy, operational smoothness, and long-term reliability.

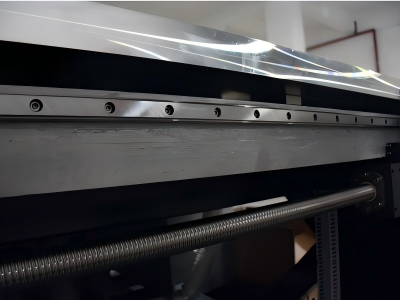

High-Precision Motion Control
Featuring THK dual linear guides and Hiwin dual ball screw drive system, the printer delivers high rigidity, precision, and stable motion performance, ensuring smooth carriage movement and long-term positioning accuracy.

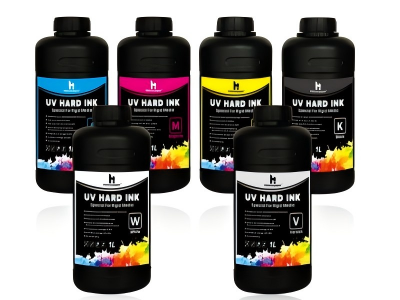

One-stop UV Solution
Dedicated inks, RIP profiles, and color management for stable output and superior print quality.
Application
Suitable for signage, outdoor advertising, display panels, wall panels, decorative panels, acrylic sheets, PVC boards, KT boards, aluminum composite panels, wood, glass, metal panels, and other rigid materials. It is widely used in sign making, visual communication, exhibitions and displays, interior decoration, commercial spaces, architectural decoration, and customized panel production, meeting the needs of large-format printing, personalized customization, and batch production.
After-sales Service
FAQ
Q: What is the recommended printhead configuration for the UV-H2513 flatbed printer?
Q: How does the UV-H2513 handle CMYK, white ink, and varnish printing for acrylic and rigid materials?
Q: Can the vision camera automatically detect transparent acrylic parts and correct their position and rotation?
Q: What is the actual production speed of the UV-H2513 with CMYK, white ink, and varnish printing?
Q: What are the delivery time, installation support, warranty, and pre-shipment testing options?
Product Specification
| Resolution | 8 Color Printing | 4 Color + 4 White | 4 Color + 2 White +2 Varnish |
| 4pass （720*600） | 68 m²/h | 34 m²/h | 34 m²/h |
| 6pass（720*900） | 48 m²/h | 24 m²/h | 24 m²/h |
| 8pass（720*1200） | 36 m²/h | 18 m²/h | 18 m²/h |
| UV-H2513 Large Format Flatbed Printer | ||
| Model | UV-H2513 | |
| Printhead | 8 PCS G6 Print Heads | |

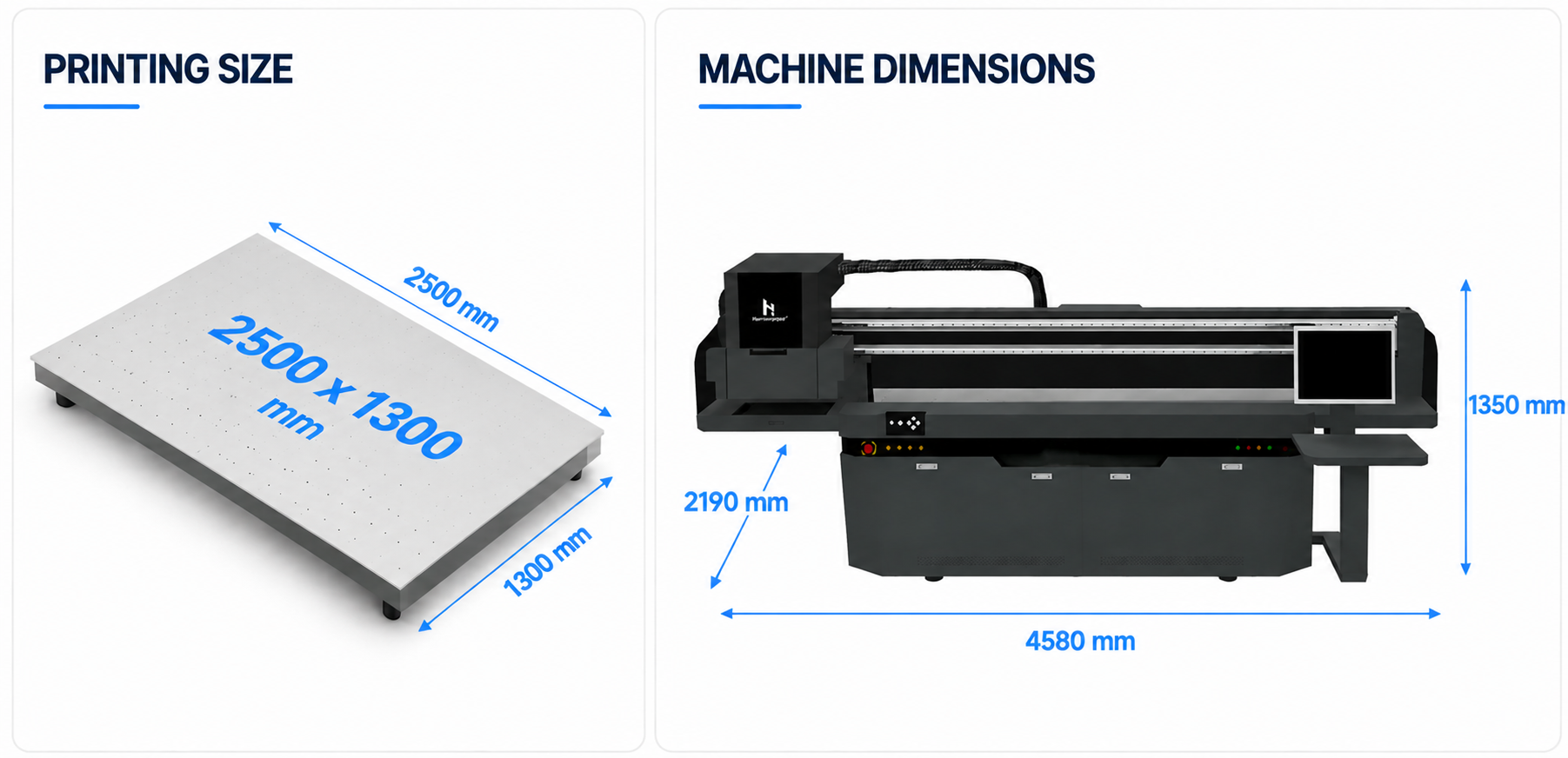

| Printing Size | 2500*1300(mm) 98.4"*51.2" |
|
| Media | Type | Acrylic, glass, wood, metal, PVC, packaging materials, and various rigid substrates. |
| Thickness | 0-150mm | |
| Ink | Type | UV Ink |
| Speed | 4pass （720*600）：68㎡/h 6pass（720*900）：48㎡/h 8pass（720*1200）：36㎡/h |
|
| Printing Resolution | 1200dpi | |
| Rip software | ColorGATE/PrintFactory | |
| Curing System | UV LED water cooling curing system | |
| Optional Features | Maximum Printing Height up to 55cm、Vision Positioning、Plasma Static Eliminator | |
| Power | 5kW | |
| Power Supply | AC 220V±10%, 50/60HZ | |
| Machine Size/Net Weight | 4580*2190*1350mm/1200kg 180.3"*86.2"*53.1" |
|
| Packing size/Gross Weight | 4800*2280*1700mm/1550kg 189"*89.8"*66.9" |
|
