UV-H302 Roll-To-Roll UV DTF Printer
The UV 302 Roll-to-roll printer is a 30cm wide roll-to-roll printer, equipped with dual XP600 printheads. This design not only ensures consistent print quality but also offers a low initial investment, making it an ideal solution for businesses looking to balance performance with affordability.
One of the standout features of the UV 302 is its ability to print fluorescent colors. These vibrant, glowing tones bring a striking visual impact, especially for custom stickers and personalized gifts. Whether you're creating vivid, eye-catching designs or unique, customized items, the UV 302 delivers the flexibility and precision needed for small-scale, high-quality production.
When the ultraviolet lamp of the UV printer irradiates the fluorescent ink, the fluorescent material will absorb the energy of ultraviolet rays and emit fluorescence, thus making the printed matter present a fluorescent effect.
Key Features
Ink shortage alarm
The ink shortage alert system monitors ink levels and notifies users when they run low, preventing print interruptions.

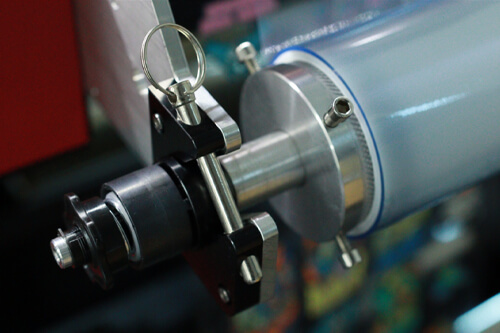

Roller locking pin
Ensuring stability and preventing unintended movement in various machinery or equipment.

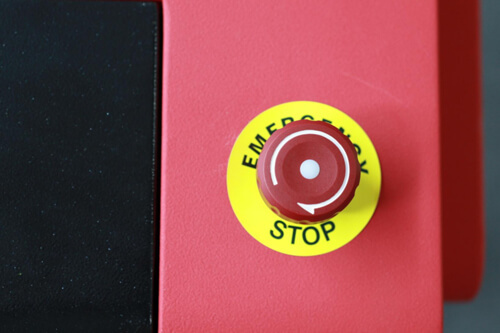

Emergency button
Preventing accidents or damage during emergencies by cutting off power instantly when pressed

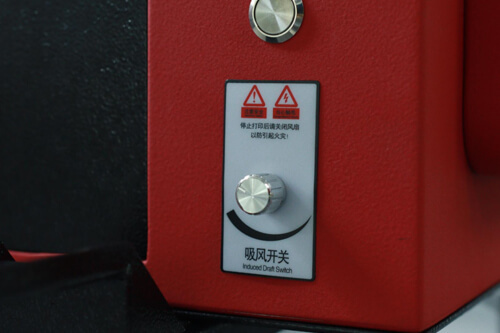

Adjustable Suction Knob
Allowing users to fine-tune suction levels for optimal performance in various applications

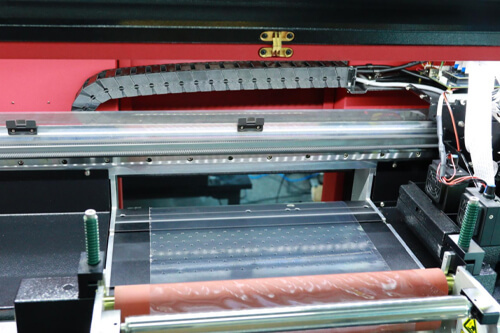

Hiwin guide rail
Ensuring smooth, accurate movement in machinery, enhancing stability and performance

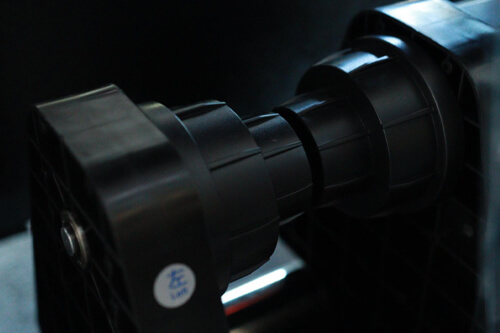

Compatible with 2-inch/3-inch core
Accommodate media rolls with either a 2-inch or 3-inch central core diameter, offering greater flexibility in roll size usage

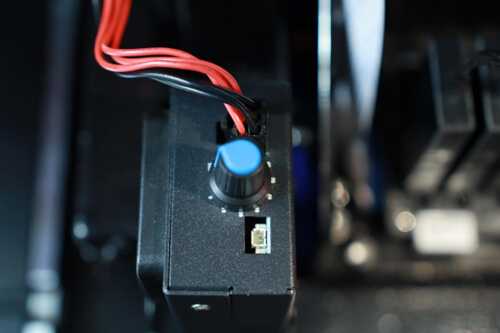

Adjustable UV light power knob
Control the intensity of UV light output, providing flexibility for different printing or curing applications

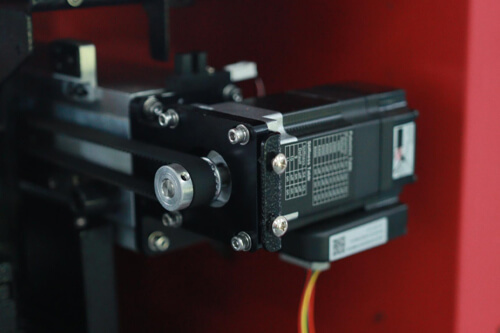

Leadshine motor
This motor offer precise motion control, high torque, low noise, and excellent reliability
Small-format UV printer, offering a low-cost investment to meet your customization needs
-
Model UV-H302 Roll-To-Roll Printer Printhead 2Pcs Epson XP600 Printing Width 300mm Ink C/M/Y/K/W/Varnish/FY/FM Printing Solution Normal: CMYK+W+Varnish
Fluorescent printing: C FY FM K+W+VarnishPrinting Speed 4 Pass 3.8m²/H（360*720）
6 Pass 2.5m²/H（360*1080）
8 Pass 1.8m²/H（720*720）RIP Software Maintop, PhotoPrint, CADLink Ink Curing Method Single Side UV LED Lighting Voltage 110V/220V Power Printing: 200W, Front, Middle and Back Heating: 450W Machine Size/Net Weight L1230 × W540 × H1150mm, 100Kg Packing Size/Gross Weight L1430 × W830 × H775mm, 150Kg -
UV-H302 Download Center
Here, you can find all the necessary resources for your printer.
Get detailed guidance on installation, operation, and maintenance of your product. Download the official instruction manual to ensure optimal performance and safe usage.
-
Choose
Access the latest software and drivers for your printer. Ensure you have the most up-to-date version to get the best performance.
CADLINK Support ►
-
