UV-H6090S Multifunctional Flatbed Printer

- 3*i3200-U1 high speed printing
- Multicolor configuration
- CCD vision positioning system
- Eco-friendly and energy-saving

Product Category:

UV Flatbed Printer

key-words

Inquiry

FIND UV INK ►

FIND FILM ►

Description
Specification
Support
Software
Video

UV-H6090S Multifunctional Flatbed Printer

The upgraded Hanrun UV-6090S printer inherits the high speed, precision, and stability of the previous generation while introducing a brand-new full-intelligent touch control system for a more intuitive and effortless user experience. Equipped with three i3200-U1 print heads, it delivers exceptional printing quality and performance. Its extended media compatibility supports a wide range of materials, and the high-speed output ensures greater production efficiency .The adjustable UV lamp power allows flexible control according to real production needs, helping reduce energy consumption and improve curing performance. Whether printing directly on flat materials or printing on film, the UV-6090S delivers professional-grade results with ease. With its smart control system and powerful performance, the new UV-6090S redefines precision UV printing — delivering stable, high-quality results for every application.

Details

Smart ccd vision positioning system

The CCD function in the UV printer offers highly accurate positioning with minimal deviation. It ensures precise alignment, reducing errors and guaranteeing consistent, high-quality prints. This feature enhances print accuracy, making it ideal for intricate designs and detailed applications.

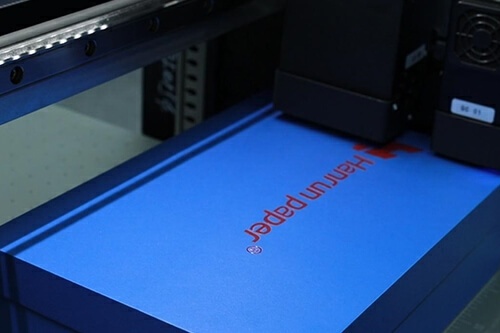

Aluminum Plate with Scale and Suction

Features a lightweight, durable honeycomb aluminum plate with an integrated scale for precise measurements and a suction mechanism to hold materials in place securely, enhancing print accuracy.

Low Ink Alarm

The low ink alarm feature alerts the user when the ink levels are running low. It helps prevent interruptions during the printing process, ensuring continuous operation and reducing downtime.

Supports multiple print modes

Both direct printing and printing on the film can be supported, with a maximum medium height of 180mm.

3 i3200-U1 print heads

Equipped with 3 high quality print heads, greatly improve printing efficiency and stability

Adjustable UV lamp power

The UV lighting power can be adjusted according to the actual production needs, which can play a role in energy saving.

Convenient touch screen

The touch screen can display more information, more user-friendly operation.

Bottom plate heating

In the winter or when the temperature is low, the heating of the base plate can prevent the ink from thickening and causing the ink blockage problem in the nozzle

Features
# CCD vision positioning system: Ensures precise alignment and accurate print registration.
# Precision design: The touch screen panel is easier to operate, and the high-precision vacuum plate made of aluminum alloy is equipped with a turbofan below, which can firmly fix the media. Maximum height drop of 180mm, matching different height media
# High speed: Equipped with 3 i3200 Printhead, to achieve high-quality printing work
# Multiple color modes: W+CMYK+Varnish for high precision and high resolution printing
# Safe, reliable, and stable: integrated printer to improve operational safety; Equipped with temperature and humidity meter, know the operating environment anytime and anywhere; Ink pad and nozzle 100% seal more reliably; Add a fixed support at the bottom to increase stability
# Green environmental protection: Equipped with an adjustable power size of UV curing lamp, according to the printing medium can freely adjust the power, more environmentally friendly and energy-saving

# Broaden business scenarios: Multi-functional printing can be achieved, such as cylinder, acrylic, glass, aluminum plate, etc., diversified application scenarios, broaden your business

Applications

You may also need
- UV Inks
- UV film
- Positioning film
- Laminator

UV-H6090S Multifunctional Flatbed Printer
Model type	UV-H6090S
Printing heads	3 *i3200U1
Media	Width	<600mm
	Thicknes	≤180mm
Printing area	600*900(mm)
Ink	Ink Type	UV ink
	Capacity	Color Siphon + Regular Mixing of White Ink
	Color	W+CMYK+Varnish
Print Resolution	Maximum 2400 dpi
Interfaces	Gigabit Ethernet
Printing Speed	Finish printing a 600mm900mm sheet in 5 mins（7201800dpi）
Voltage/Frequency	AC 220V±5%,10A 50HZ±1
lnk Curing Method	Dual UV LED Lights
Power Consumption	850W
Dimension(with stand)	(L)1694mm(W)1460mm(H)815mm/761lb(345kg） (L)66.73" × (W)57.48" × (H)32.09"
Packing size	(L)1840mm(W)1690mm(H)1080mm/772 lb(350kg) (L)72.44" × (W)66.54" × (H)42.52"
Environment	Power on	Temperature: 59°F to 90°F [15℃ to 32℃ ]; Humidity: 35 to 80% (no condensation)
	Power of	Temperature: 41°F to 104°F [5℃. to 40℃]; Humidity: 20 to 80%(no condensation)

UV-H6090S Multifunctional Flatbed UV Printer Download Center

Here, you can find all the necessary resources for your printer.

Products Brochure PDF ►

Download detailed product information for our printers to learn more about their features, specifications, and capabilities.

Instruction Manual Download ►

User's Guide Download ►
Select Your RIP Software

Access the latest software and drivers for your printer. Ensure you have the most up-to-date version to get the best performance.

Maintop Support ►

Support for Maintop RIP software guide and ICC profiles to ensure precise color accuracy and optimal print quality for your projects.

CADLINK Support ►

Support for CADLINK RIP software guide and ICC profiles to ensure precise color accuracy and optimal print quality for your projects.

Flexi Photoprint Support ►

Support for Flexi Photoprint Hanrun Paper version RIP software guide and ICC profiles to ensure precise color accuracy and optimal print quality for your projects.
