3 EPSON I3200 and 9 ink cartridges
CMYK printing & 9 multi-color fluorescent printing
Adaptive unwinder
Cost effective
Product Introduction
DTF printing is a new technology to replace the printing on fabric that uses laser printers and DTG (direct to fabric printing) to heat transfer T-shirt paper.
DTF printing technique has several advantages, including lower investment, no pretreatment, and easier to use; and a broader range of applications, including a variety of dark and light-colored fabrics.
DTF PRO A602 is a new printer designed by Hanrun paper with 3 print heads and 9 ink cartridges. It can not only realize CMYK+W five-color printing, but also can easily realize 9 multi-color fluorescent printing, which greatly broadens your color scheme. When using the DTF fluorescent printer, we highly recommend you to use Hanrun paper's unique fluorescent color scheme and DTF PRO fluorescent ink, which can improve the printing effect and make the gradient of fluorescent color and CMYK color more natural.
Features
# Fluorescent colors available: Cooperate with Hanrun's self-developed fluorescent ink for the PRO series to achieve a better fluorescent color effect
# Better color result: The graduation effect between fluorescent colors and other colors is much more natural;
# Updated ink cartridge: 9 ink cartridge for CMYK+W and fluorescent ink;
# Adaptive unwinder: Film running is more stable, not easy to arch; Effectively protect the print head;
# Cost effective: Reduce the cost compared with 4-head fluorescent color scheme;
Details

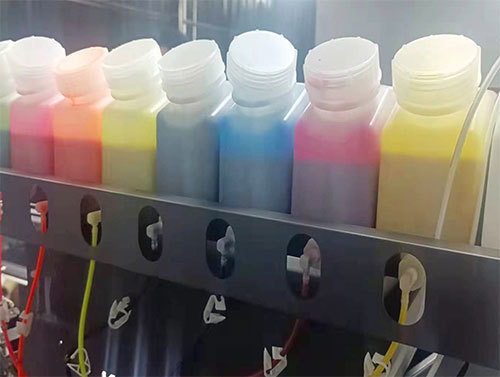

Continuous Ink Supply System

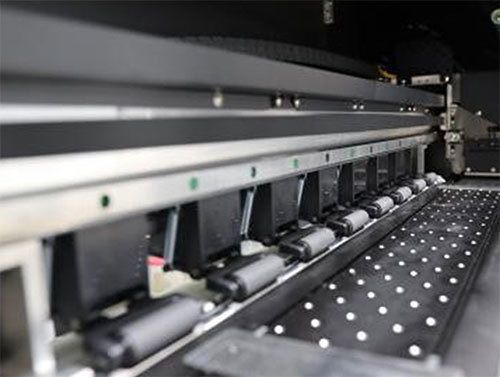

High-precision Rail

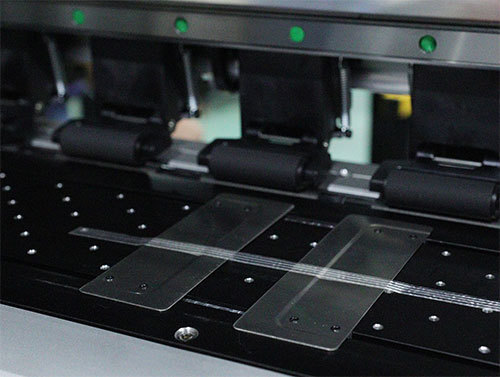

Compact Pressure Wheel Group
Application
Product Specification
| DTF PRO-A602 Fluorescent Printer | |
| Print head | 3 EPSON I3200 |
| Print resolution/speed | 4pass（360*2400dpi）：14㎡/h |
| 6pass（360*3600dpi）：10㎡/h | |
| 8pass（720*2400dpi）：7㎡/h | |
| Ink | DTF water-based ink（CMYK+W+FM/FY/FR/FG） |
| Ink supply method | Continuous ink supply + white ink circulation system |
| Print width | 600mm |
| Print media | DTF film |
| Transmission medium | Automatic film collecting and discharging system |
| Heating equipment | Front, middle and rear three-stage heating |
| Transmission interface | Ethernet |
| Voltage | AC110V/220V(±10%) 50HZ/60HZ |
| Working environment | Temperature 20-30℃ Humidity 45-70%RH |
| Power | 350W |
| Software compatibility | MainTop/PhotoPrint19 |
| Printer size | L1755*W770mm*H1600mm |
| Printer net weight | 150kg |
Service included:
- Technical Training and guidance (Professional technical team support) Installation manual, video or Online support
- 1 Year warranty (See the full warranty details on our guarantee page and the DTF PRO terms and conditions.)
- Dealer/partner support
- Wearing parts package
Other materials you may need (need to be purchased separately):
- Smoke purifier - (to keep the humidity above 40% in the print room) - recommended
- DTF Inks
- DTF Film
- DTF Powder (white powder, black powder)
- Windows 7 or higher Computer (PC) with an available USB port
