4 printheads 9-color solution
Max. printing width 1200mm
Fluorescent/spot/gradient color
High-efficiency multi-printer control
Product Introduction

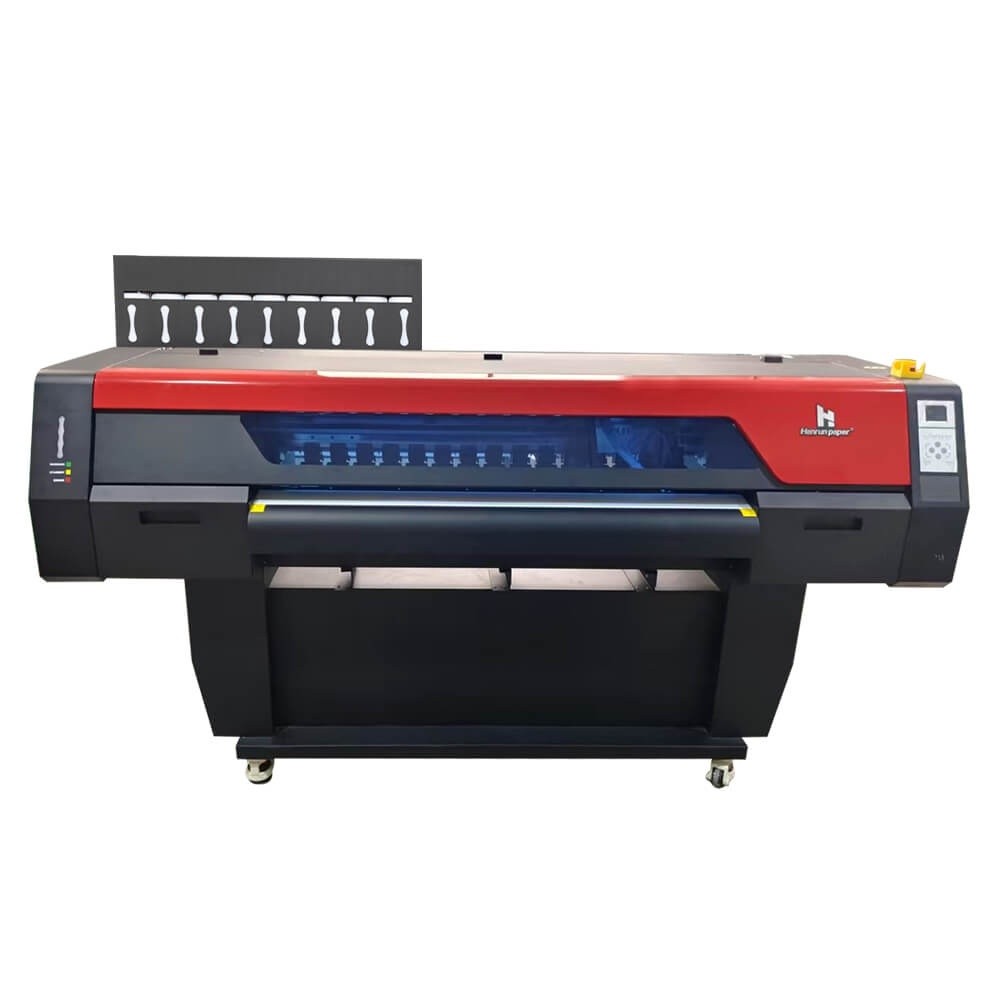

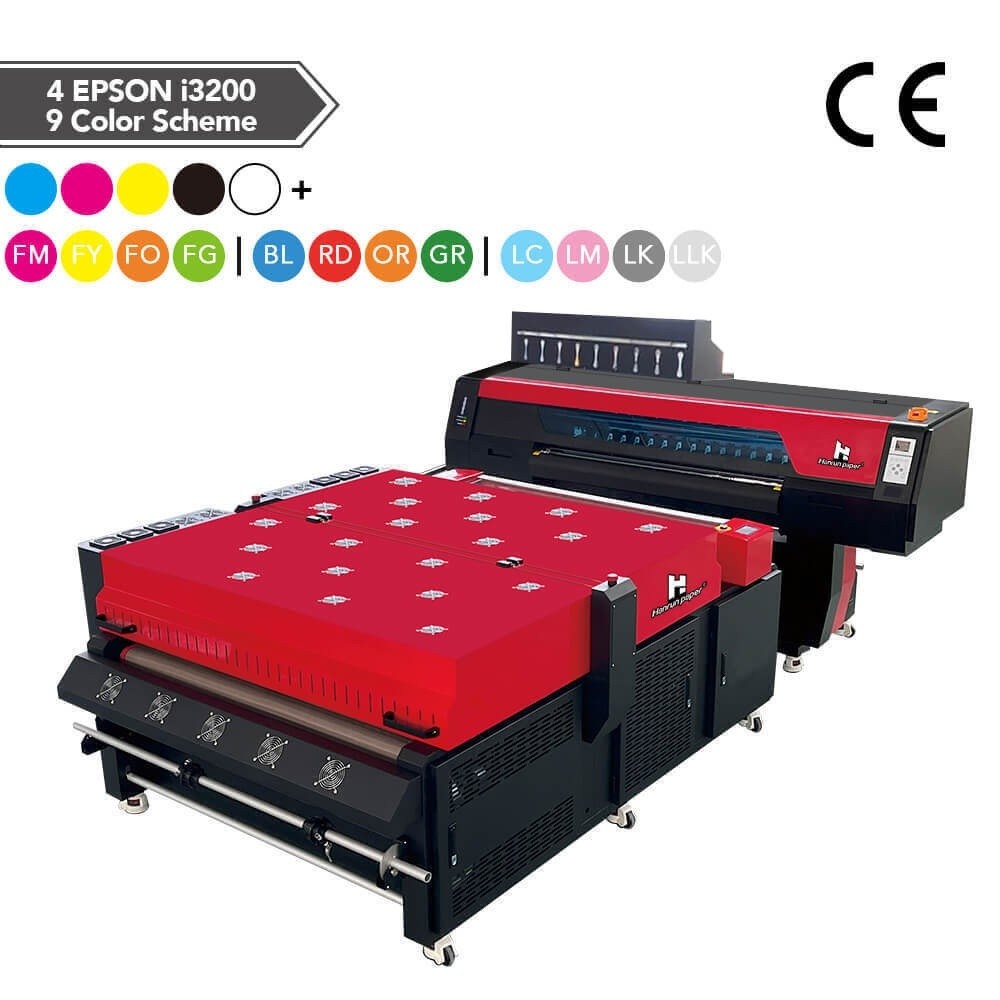

NEW EVO A-1204 DTF Printer
In our easy-to-use EVO series, we introduce the EVO-A1204 DTF printer that unlocks the potential for high output and print speed. With a staggering 1200 printing width, four Epson printheads, and a sophisticated 9-color printing solution, this DTF printer is your gateway to producing breathtaking, high-quality prints like never before. This exceptional palette allows you to achieve a level of detail, depth, and color accuracy that was previously unattainable. Enhance your printing capabilities and meet your deadlines effortlessly.
Features
1200 mm wide printing platform
White ink stirring system
I3200-A1 print heads
Electric rewind system
Integrated smoke purifier Constant temperature system for the dust box
Joint control of multiple units
Details

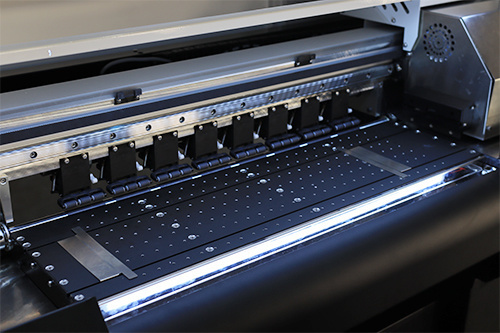

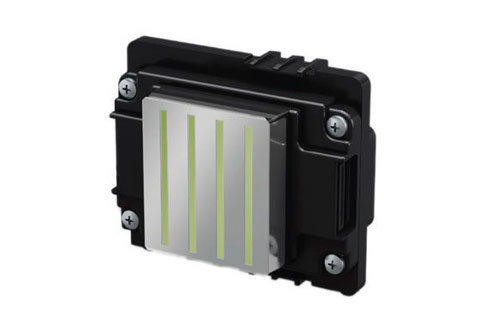

4 heads of I3200-A1
To further enhance the benefits of a 1,200mm width, we have designed a 4-nozzle deck to increase the production capacity of the machine.

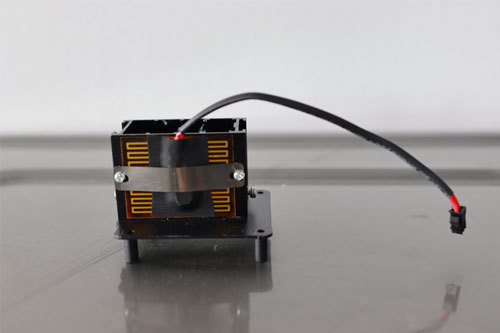

Damper heating
The new printer's ink damper includes external heating units mounted on each ink baffle. This feature allows the printer to function smoothly in varying temperatures and ensures good ink mobility during printing.
THK silent guide
High quality THK guides to ensure stable and quiet printing. These guides provide smooth operation and long life, making them ideal for high-end machines.

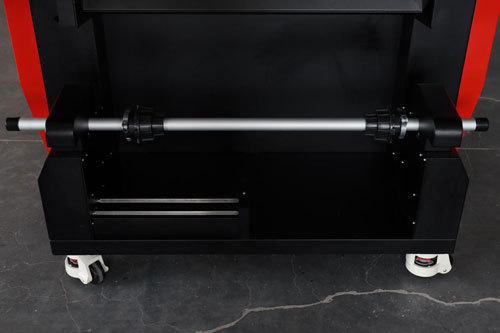

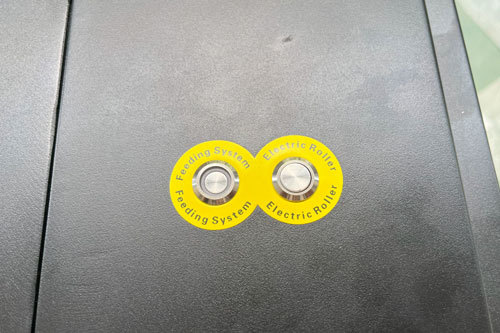

Electric rewind system
In order to improve the control of the printer rewind system, we have designed a push key rewind release system. This reduces the difficulty in the operation of the machine and facilitates the rewinding process.

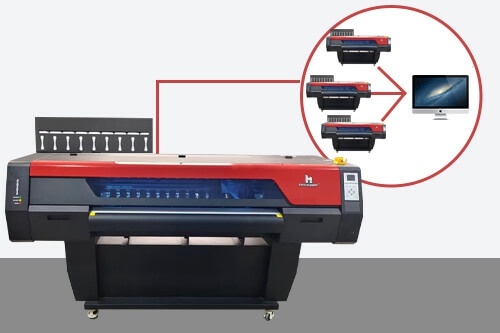

MPM (Multiple Printer Manager)
A computer can control multiple devices with different ip addresses. MPM (multi Printer Manager) uses one computer to manage multiple printers, helping workers control machine production more quickly and improve production efficiency.
White ink stirring system
In order to prevent the white ink from settling when it is not used for a long time, we have incorporated a white ink agitation system in the machine. With this system, you can replace white ink immediately once it runs out.
Certificate
Application
Product Specification
| EVO 1204 DTF Printer | |||
|---|---|---|---|
| Model | EVO-A1204 | ||
| Print head | 4 EPSON i3200 A1 | ||
| Printing precision | 360*1800dpi 720*1200dpi |
||
| Print resolution/speed | 4 color: 4pass(360*2400dpi): 28m2/h 6pass(360*3600dpi): 19m2/h 8pass(720*2400dpi): 14m2/h |
||
| Ink | DTF Pigment Ink: CMYK+W; CMYK+LC/LC/LK/LLK(light color); CMYK+FG/FM/FY/FR(fluorescence); CMYK+Spot Color | ||
| Heating sections | Preheater; rear heater | ||
| Press temperature | 160-170℃ | ||
| RIP software | Maintop/Photoprint/CADlink | ||
| Language | English / Chinese | ||
| Work environment | Temperature: 20-35℃, Humidity:35%-65% | ||
| Power | 200w~600w | ||
| Rated power | 600w | ||
| Printer dimensions | 2558(L)*835(W)*1315(H)mm 300kg | ||
| Packing dimensions | 2630(L)*930(W)*1400(H)mm 377.5kg | ||
| Functional item | Shake Powder Control/Powder Amount Control/Temperature Control | ||
| Voltage | AC110V / 220V 50HZ/60HZ | ||
| Related consumables |
PRO 75μ Hot peel DTF Film |
||
