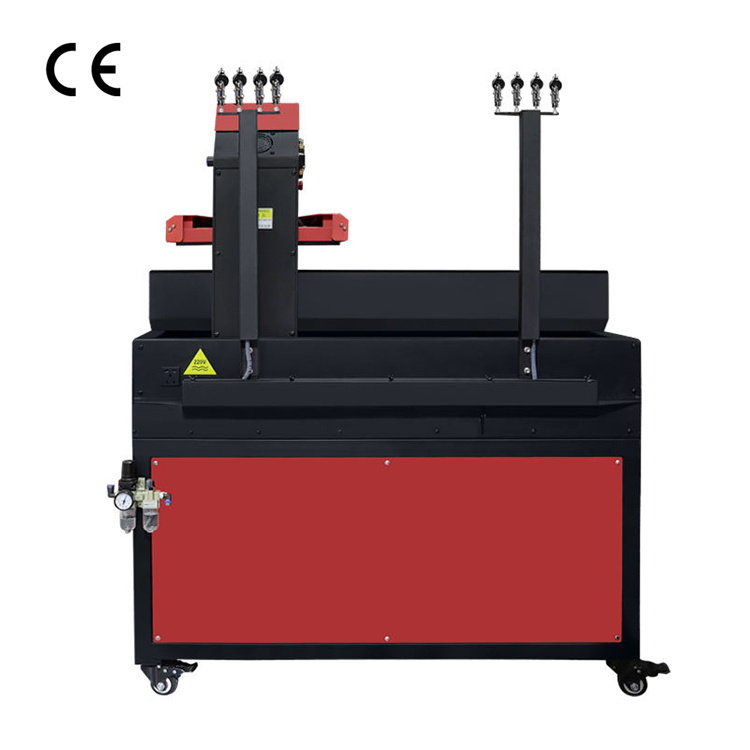

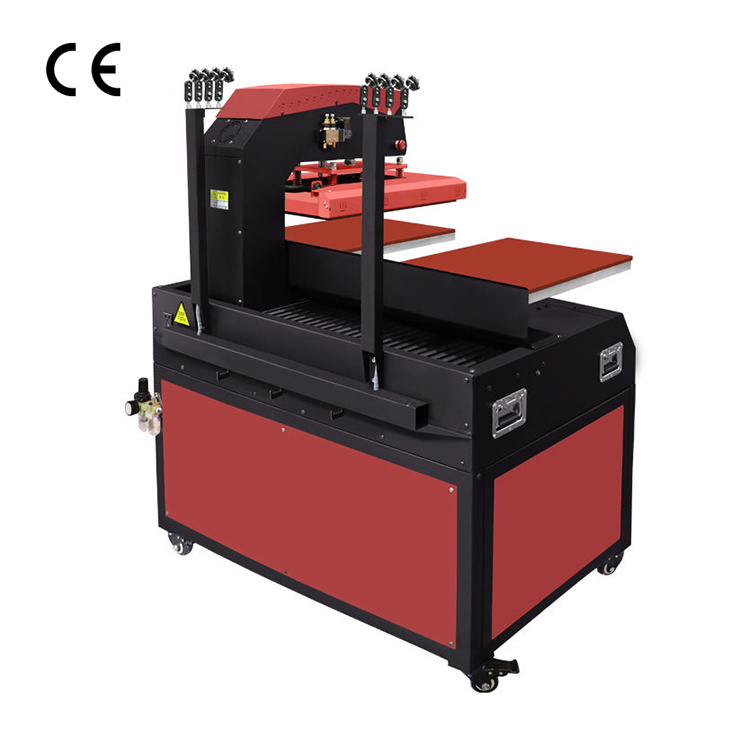

PRO-F6040-2 Double Station Pneumatic Heat Press

- Intelligent touch screen panel
- Double tables improves efficiency and production
- Manual and automatic
- Pneumatic operation

Product Category:

Pneumatic Heat Press Machine

DTF Printer


key word:

heat transfer press heat press press machine t shirt transfer machine heat transfer machine
undefined

undefined

Detailed Description

Description

1. Intelligent touchscreen panel: Precise control of temperature and time. Easy to use.
2. Double tables for enhanced productivity: while ironing on one base plate, place the next object to be personalized on the other,  improving efficiency and production levels.
3. Two optional modes: Manual and automatic can be easily adjusted with high positioning accuracy.
4. Pneumatic operation: The heat press machine is pneumatically operated, and can adjust the pressure to ensure the transfer effect.  The pneumatic operation drastically reduces operator fatigue.
5. Eight infrared locators: The orientation and position of the locator are adjustable.
6. Using servo motor, high efficiency and stability

7. CE Europe Certificates



Specifications

Product name PRO-F4060-2 Double Station Pneumatic Heat Press
Printing size (cm²) 40*60(table size optional)
Voltage (V) 220/110
Power (KW) 3.2
Temperature range (℃) 0-260
Time range (S) 0-999
Weight (KG) 180
Machine size (cm) 110*76*145



Details

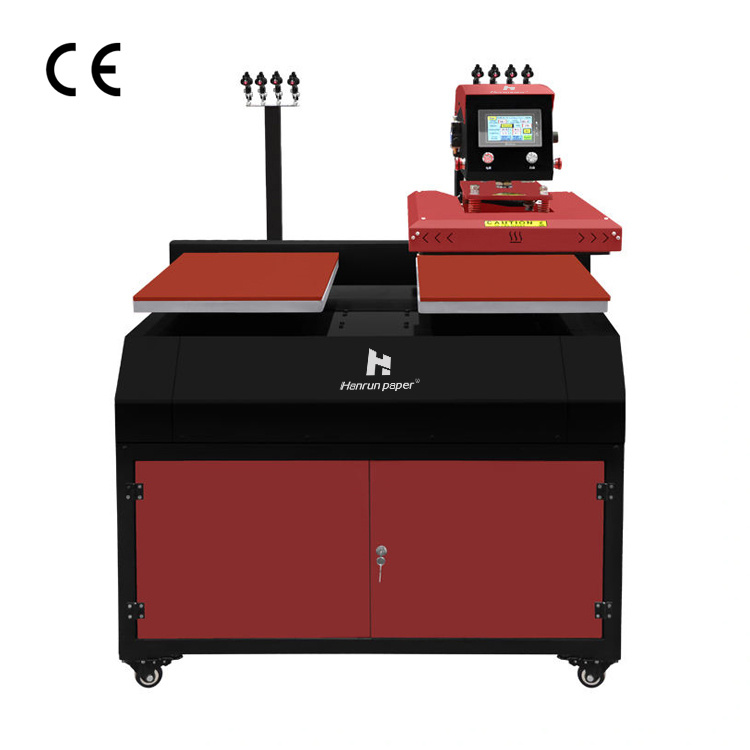

Intelligent Touch Screen Panel

Precise control of temperature and time.

It's humanization design and easy to use.

Two optional working modes

Manual and automatic can be easily adjusted, have high positioning accuracy, are easy to use, and layout easier.

Place finished clothes device

T-shirts can be inserted into the bottom platen.

High efficiency and save labor.

Double Workable

The upper plate is movable and the lower plate is fixed which ensures the garment will not be migrated.

Pneumatic valve

Adjust the pressure to ensure the transfer effect.

Infrared locators

The orientation and position of the locator are adjustable and it's very precise.



Four spring gear

Springs on the heating plate to ensure the pressure is more even and effect better.

Stop button

When the accident occurs. the power can be shut down to stop the operation.

Pressure gauge

Adjust the pressure required for transfer printing products, and improve work efficiency.



Application
